Item Description

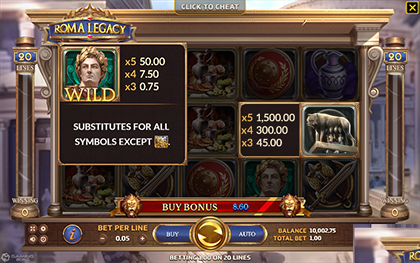

Provides players with detailed information about each item of the game.

---

Overview

Prepare the assets

Assets	Description

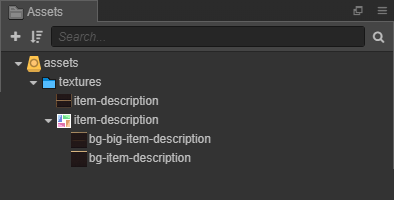

	Used to setup background.

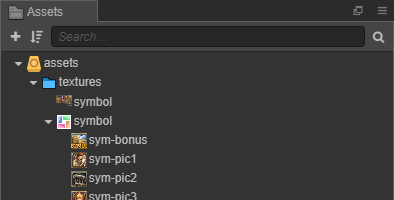

	Used to setup for static symbol.

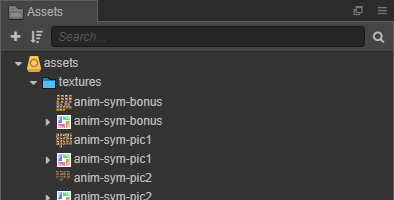

	Used to setup for animation symbol.
	Used to setup Payout/Description.

Setup Prefabs Item Description

Step	Action	Description	Image Reference

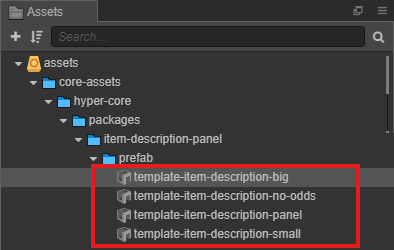

1	Locate all template prefabs need for Item Description	Search for the template-item-description prefab.

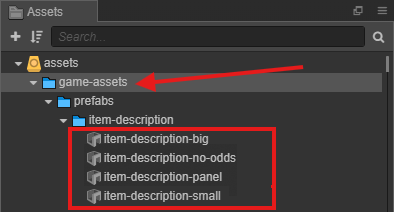

2	Clone assets	Copy/Pase to game assets location, then rename the copied prefabs by removing unnecessary prefixes.

item-description-small

 Setup prefab `item-description-small` for item have win payout:

    ![Locate Prefabs](./img/07-item-description/setup-item-small-overview.png)

    | Step | Action | Image Reference |
    | :--: | :----- | :-------------: |
    | 1 | - Setup **Sprite Frame** in `background` from prepared assets. | <img width="1000"/>![Locate Prefabs](./img/07-item-description/setup-item-small-1.png) |
    | 2 | - Setup Item with prefab name follow format item-description-**name**".<br/> - Setup **Animation Name** with animation name of item in **Animation Provider**.| ![Locate Prefabs](./img/07-item-description/setup-item-small-2.png) |
    | 3 | - Setup **Sprite Frame** in `sprite-item` same name with item from prepared assets. | ![Locate Prefabs](./img/07-item-description/setup-item-small-3.png) |

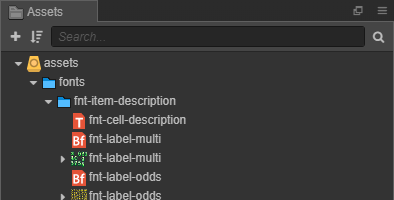

    | 4 | - Change **Color**, **Font** and **Font Size** in `multi-x...` and `oods-x...` follow the game design.<br/> - Use [Bitmap Font Creator](http://localhost:3000/docs/category/game-asset-structure) to create Font Bitmap if you need it.| ![Locate Prefabs](./img/07-item-description/setup-item-small-4.png) |

item-description-no-odds

Setup prefab `item-description-no-odds` for item have description without win payout:

    ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-overview.png)

    | Step | Action | Image Reference |
    | :--: | :----- | :-------------: |
    | 1 | - Setup **Sprite Frame** in `background` from prepared assets. | <img width="1000"/>![Locate Prefabs](./img/07-item-description/setup-item-no-odds-1.png) |
    | 2 | - Setup Item with prefab name follow format item-description-**name**".<br/> - Setup **Animation Name** with animation name of item in **Animation Provider**.| ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-2.png) |
    | 3 | - Setup **Sprite Frame** in `sprite-item` same name with item from prepared assets. | ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-3.png) |
    | 4 | - Setup **String**, change **Color**, **Font** and **Font Size** in `description` follow the game design.<br/> - Use [Bitmap Font Creator](http://localhost:3000/docs/category/game-asset-structure) to create Font Bitmap if you need it.| ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-4.png) |

item-description-big

Setup prefab `item-description-big` for item have win payout and description:

    ![Locate Prefabs](./img/07-item-description/setup-item-big-overview.png)

    | Step | Action | Image Reference |
    | :--: | :----- | :-------------: |
    | 1 | - Setup **Sprite Frame** in `background` from prepared assets. | <img width="1000"/>![Locate Prefabs](./img/07-item-description/setup-item-big-1.png) |
    | 2 | - Setup Payout for item, we do **Step 4** in **Setup prefab `item-description-small`** | [Configure Item Description Small](./item-description#item-description-small) | |
    | 3 | - Setup Payout for item, we do **Step 4** in **Setup prefab `item-description-no-odds`** | [Configure Item Description No Odds](./item-description#item-description-no-odds) | |

:::tip Use Helper to setup: 1. Setup Content Size and Cell Item Size follow game design. 2. Use prepared fonts (Bitmap) to setup Labels font. 3. Click Set Size to run helper. 4. Setup Background, Sprite Frame, Animation, Payout, Description of item from prepared assets.

![Locate Prefabs](./img/07-item-description/setup-item-helper.png)

:::
