Idle Animation

---

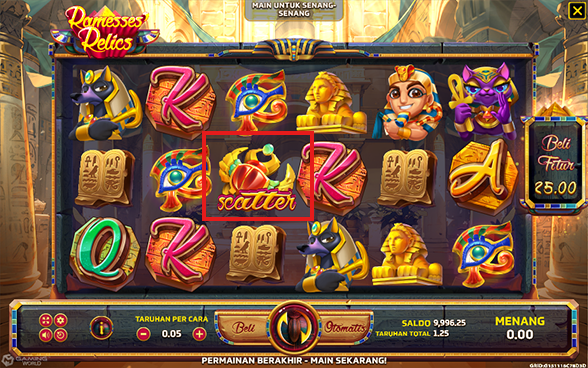

Overview

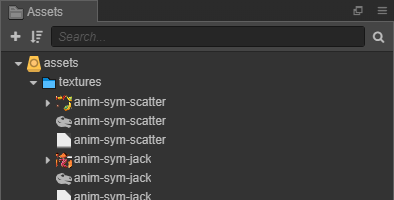

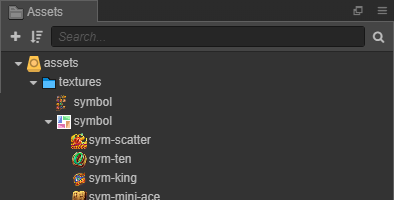

Prepare the assets

Assets	Description
	Used to Setup the static sprite frame.
	Used to Setup the idle animation.

Setup Idle Animation

Configure Settings

    Create the following script:

var BaseSlottySetting = p4fslot.require('slotty-setting');
var DIContainer = p4fcore.require('di-container');

BaseSlottySetting.prototype._registerInjection = function () {
    DIContainer.Register('cellItemRender', require('idle-cell-item-render'));
    DIContainer.Register('idleAnimationHandler', require('idle-animation-handler'));
};

Setup Animations

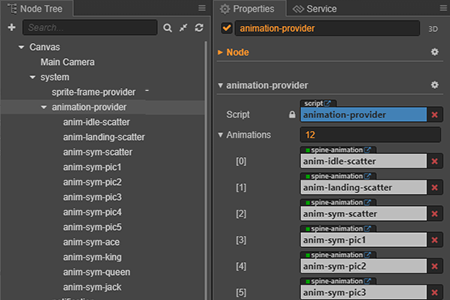

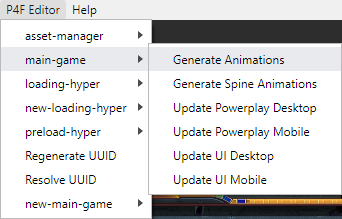

1. Using hepler to generate animation using the prepared assets

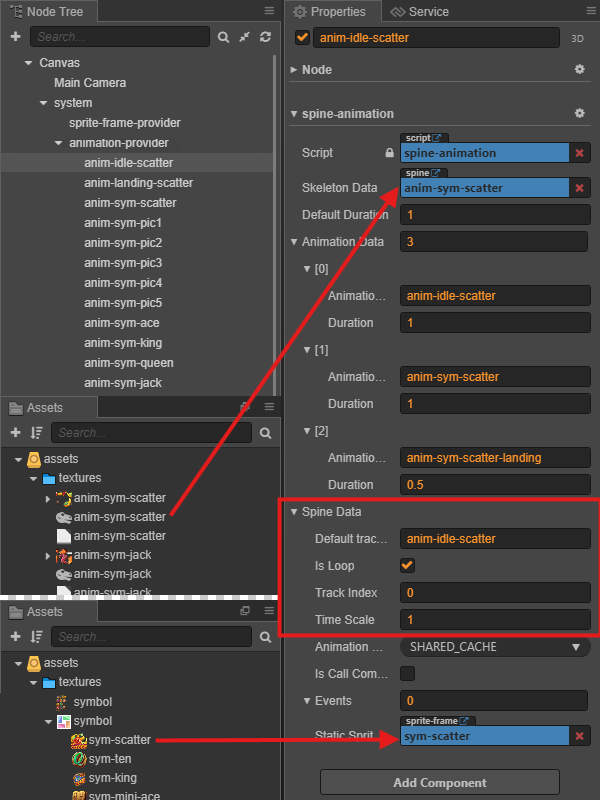

2. Configure Spine Animation

   • Set Is Loop ✅.
   • Setup the Static Sprite Frame using the prepared assets.

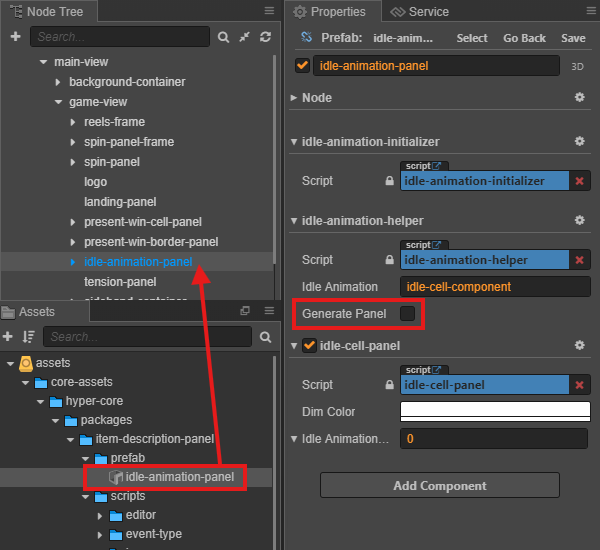

Configure Scene

1. Search for the idle-animation-panel prefab.
2. Drag the "prefab" into "scene".
3. Click "Generate Panel".

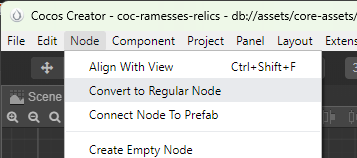

:::warning When using prefab directly from core-assets, you should convert to Regular Node.

:::
