Special Win Setup

Overview

Special Wins are high-value reward events in slot games, categorized based on the payout threshold:

Win Type	Trigger Threshold	Visual Preview

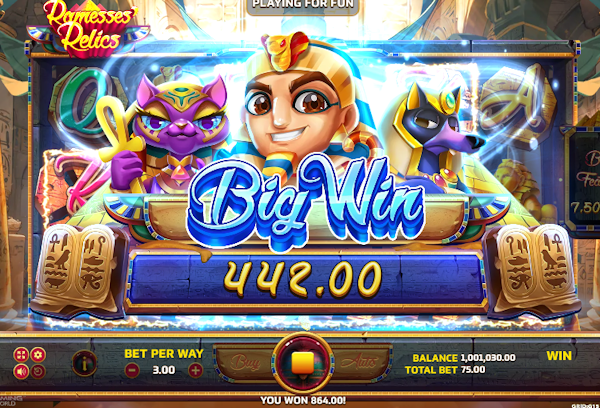

Big Win	Medium payout

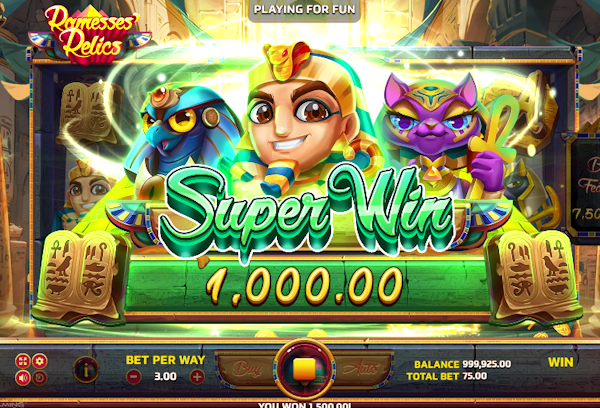

Super Win	High payout

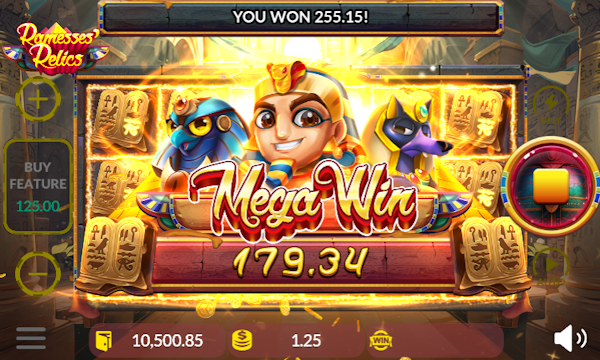

Mega Win	Maximum payout

Each type delivers increasing visual excitement to highlight significant player rewards.

Implementation

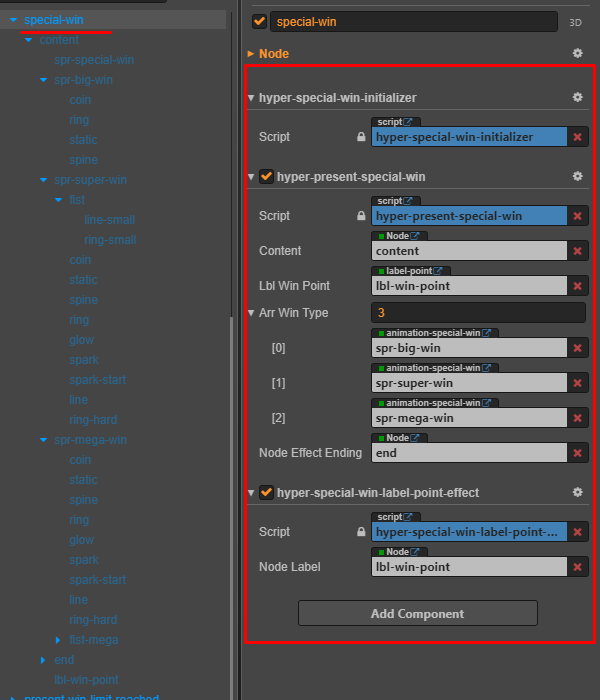

Core Components

The special win system consists of three main components:

Component	Purpose
`hyper-special-win-initializer`	Handles system initialization and setup
`hyper-present-special-win`	Manages animation sequences and display logic
`hyper-special-win-label-point-effect`	Controls win amount visualization

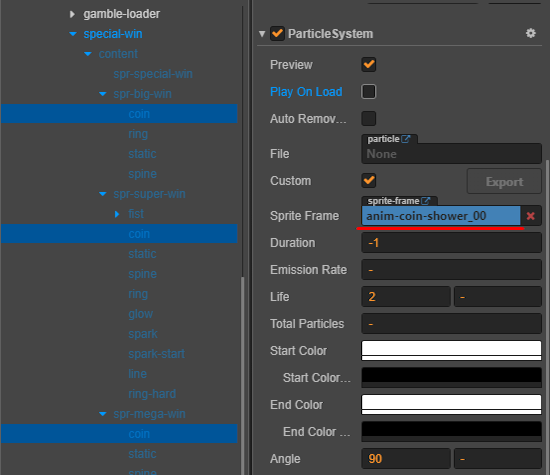

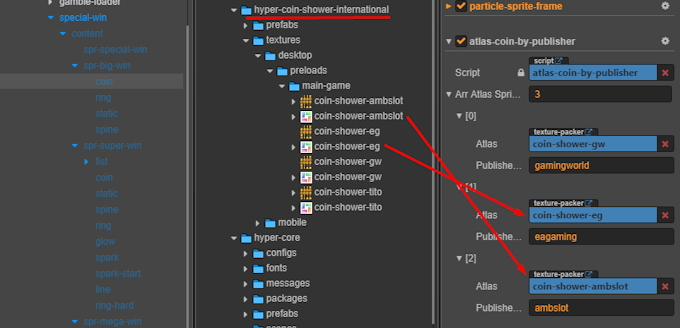

Coin Effect System

The coin shower effect uses prefab variants for different markets:

Prefab Name	Market Target	Asset Preview
`hyper-coin-shower-international`	Global markets

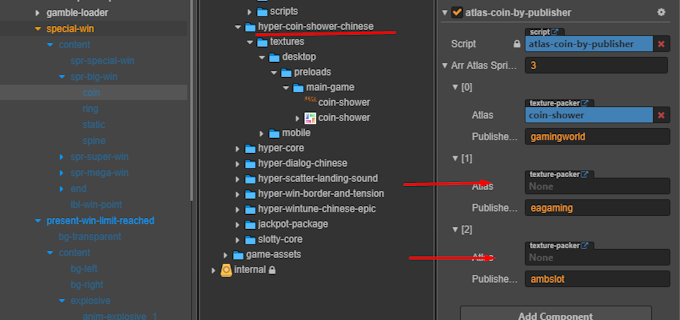

`hyper-coin-shower-chinese`	Chinese market

:::tip Position the Special Win node as per game design :::

Asset Configuration

1. Static Resources

Store static assets in platform-specific directories:

Platform	Path	Preview

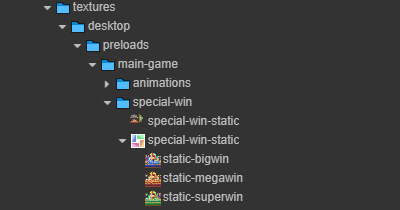

Desktop	`assets/textures/desktop/presloads/special-wins`

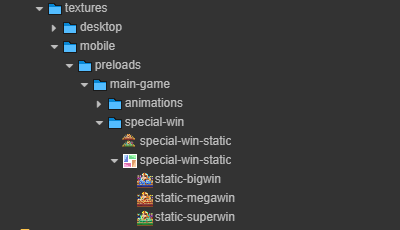

Mobile	`assets/textures/mobile/presloads/special-wins`

View Platform Asset Structure

2. Animation Setup

Special Win Animation Flow

%%{init: {'theme': 'base', 'themeVariables': { 'fontSize': '25px', 'fontFamily': 'arial' }}}%%
graph TD
    %% Win Types with Thresholds
    SW[Special Wins] --> BW["Big Win"]
    SW --> SPW["Super Win"]
    SW --> MW["Mega Win"]

    %% Big Win stages with flow
    BW --> BWI[bigwin-in]
    BWI --> BWL[bigwin-loop]
    BWL --> BWO[bigwin-out]

    %% Super Win stages with flow
    SPW --> SPWI[superwin-in]
    SPWI --> SPWL[superwin-loop]
    SPWL --> SPWO[superwin-out]

    %% Mega Win stages with flow
    MW --> MWI[megawin-in]
    MWI --> MWL[megawin-loop]
    MWL --> MWO[megawin-out]

     %% Legend nodes
    L0["Feature Name"]-->L1["Win Types"] --> L2["In Stage"] --> L3["Loop Stage"] --> L4["Out Stage"]
    class L0 specialWin
    class L1 winType
    class L2 inStage
    class L3 loopStage
    class L4 outStage

    %% Style definitions
    classDef inStage fill:#e6f3ff,stroke:#666,font-size:25px
    classDef loopStage fill:#fff2cc,stroke:#666,font-size:25px
    classDef outStage fill:#f8cecc,stroke:#666,font-size:25px
    classDef winType fill:#d5e8d4,stroke:#82b366,font-size:25px
    classDef specialWin fill:#fff4dd,stroke:#ff0000,font-size:25px

    class BWI,SPWI,MWI inStage
    class BWL,SPWL,MWL loopStage
    class BWO,SPWO,MWO outStage
    class BW,SPW,MW winType
    class SW specialWin

    %% Adjust node spacing
    linkStyle default stroke-width:4px

![Type Names](../img/05-main-scene/special-win-type-name.png)

Step 1: Add Animation Resources

Place animated assets in the following directories:

Platform	Path	Preview

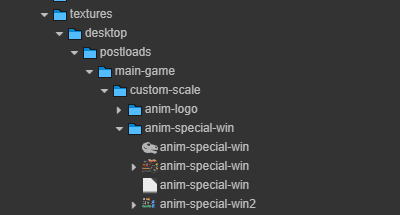

Desktop	`assets/textures/desktop/postloads/custom-scale/anim-special-win`

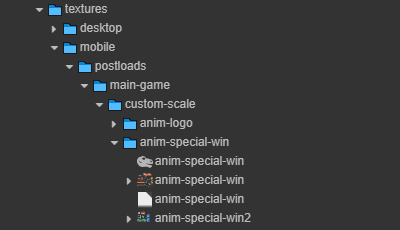

Mobile	`assets/textures/mobile/postloads/custom-scale/anim-special-win`

Step 2: Configure Animation Settings

Setting	Example

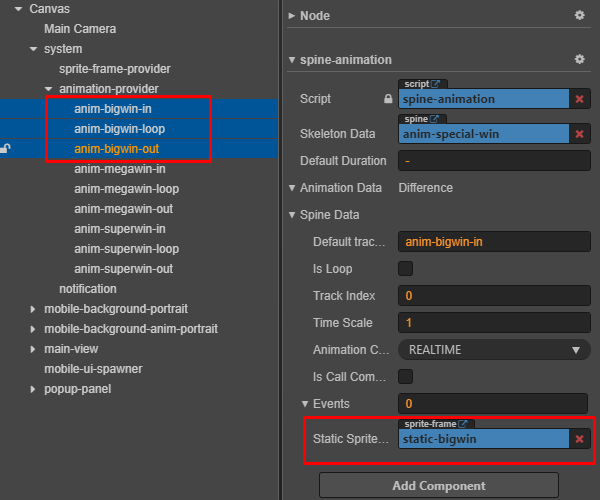

Static Fallback

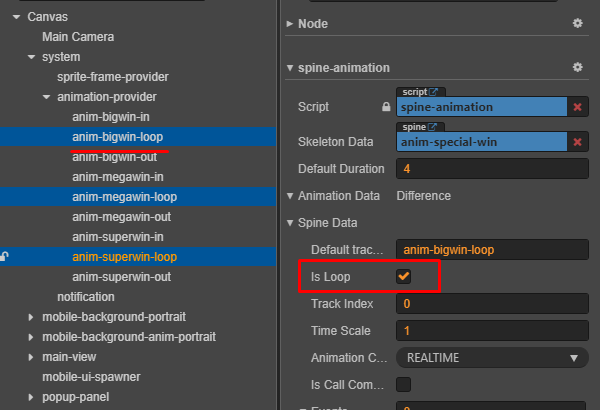

Loop Animation

View Animation Provider Setup

:::tip Static and animation folder paths may vary by game. Adjust as needed. :::

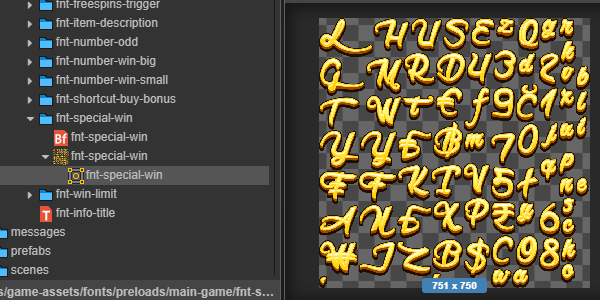

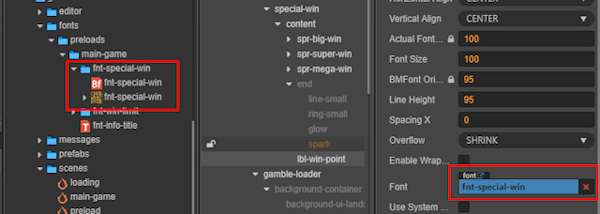

Step 3: Font Configuration

Path: assets\game-assets\fonts\preloads\main-game\fnt-special-win
Follow these steps to configure fonts for special win displays:

Package Font Assets
- Import font files into project
Font Integration
- Add font asset to special win component

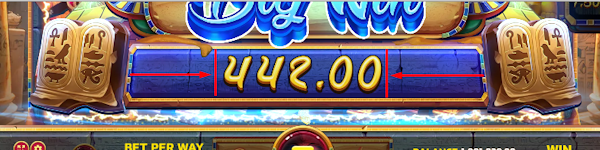

Layout Settings
- Configure text alignment
- Adjust font size and spacing

:::tip Customize font styles based on each game's design. :::
