Jackpot Setup

Overview

Jackpot Feature is a system where there are multiple levels (tiers) of prizes, usually increasing in value. This structure gives players a chance to win smaller jackpots more frequently, while still keeping a large top prize available.

Tier	Description	Preview

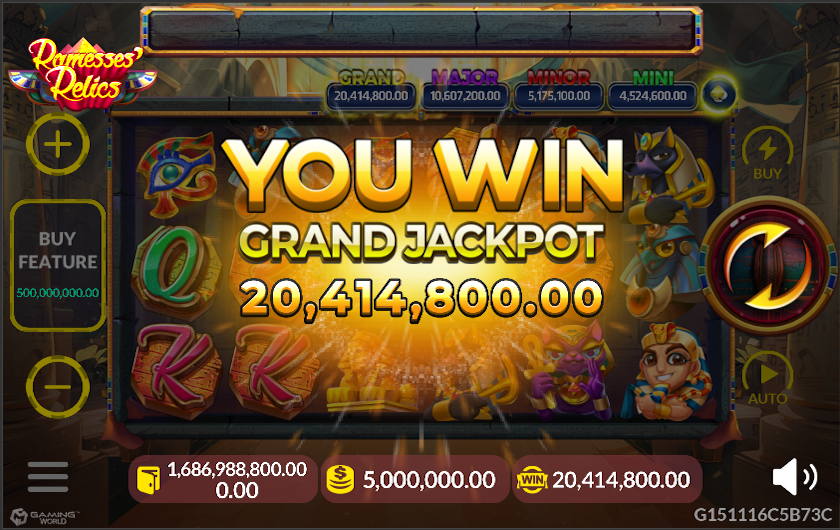

Grand	The top prize, very rare and often worth thousands or even millions(especially if it's progressive)

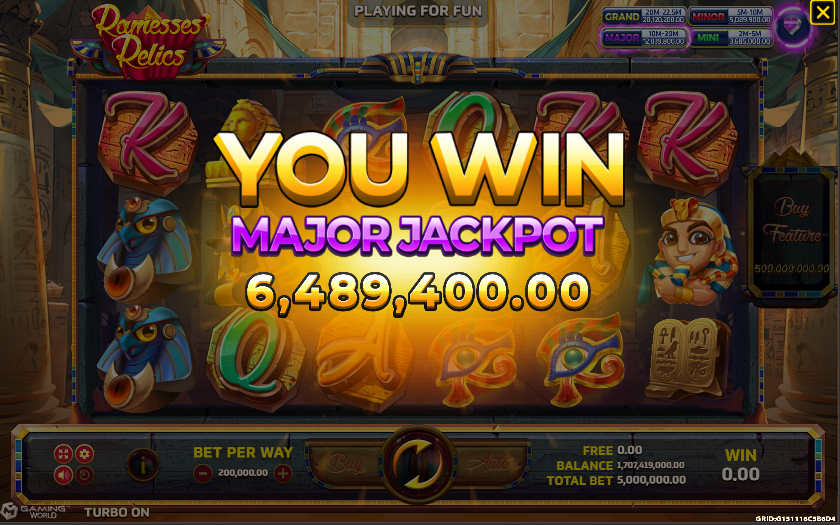

Major	A significant prize, harder to win.

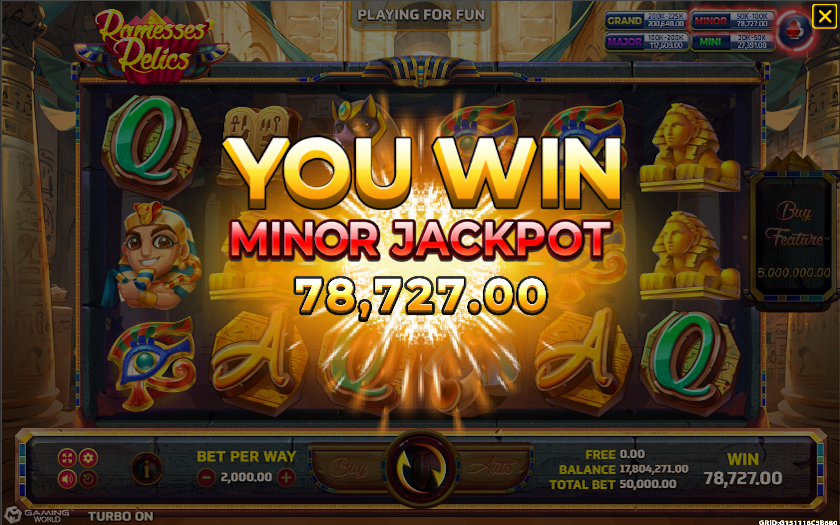

Minor	A bit higher in value, still fairly common.

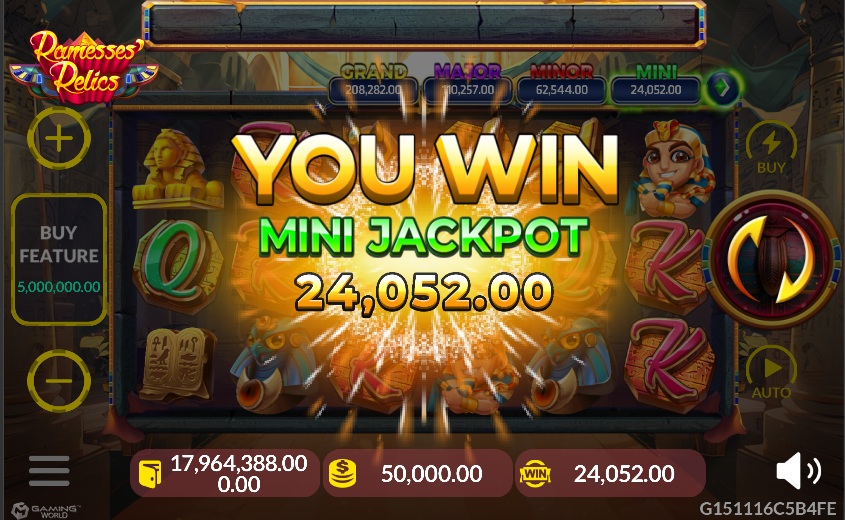

Mini	The smallest and easiest to win.

The panel is responsive and supports both desktop and mobile layouts:

Orientation	Preview
Desktop
Mobile

Implementation

Core Prefabs

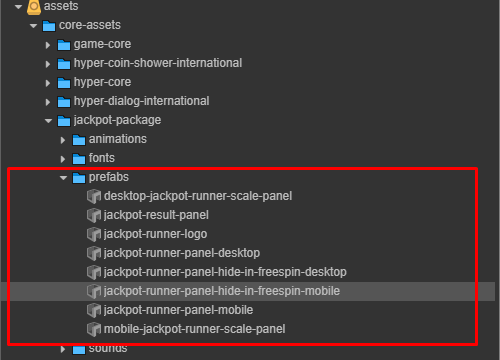

Use the prefabs located at:

assets/core-assets/jackpot-package/prefabs

Setup Steps

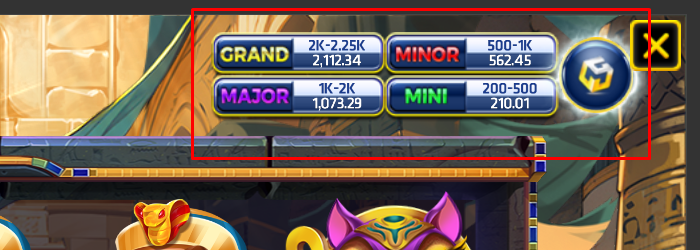

Desktop

Add the jackpot prefab to your main scene.

Set its position to (0, 0).

  ![Desktop](../img/05-main-scene/jackpot-panel/jackpot-in-desktop.png)

  More info: [Platform Node Spawner](http://localhost:3000/docs/faqs/setup-cocos-scene#platform-node-spawner)

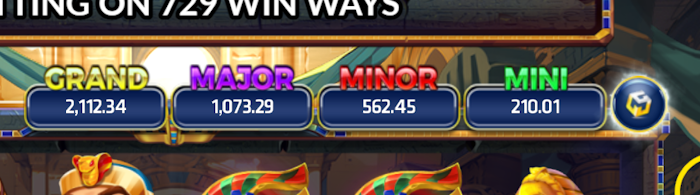

Mobile

Configure the jackpot node for both landscape and portrait orientations.

Use UI Mobile Position for a responsive layout.

  ![Mobile](../img/05-main-scene/jackpot-panel/jackpot-in-mobile.png)

   More info: [UI Mobile Position](http://localhost:3000/docs/faqs/setup-cocos-scene#ui-mobile-landscape--portrait--position)

Example using Platform Node Spawner:

  ![Mobile Spawner](../img/05-main-scene/jackpot-panel/jackpot-in-mobile-spawner.png)

  More info: [Platform Node Spawner](http://localhost:3000/docs/faqs/setup-cocos-scene#platform-node-spawner)

Result

The jackpot panel works seamlessly across all platforms and orientations.

  ![Result](../img/05-main-scene/jackpot-panel/jackpot-result.png)

  More info: [Node Spawner](http://localhost:3000/docs/faqs/setup-cocos-scene#node-spawner)

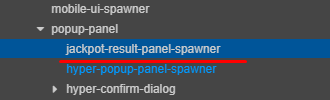

:::tip Sibling Index Order:

Node Name	Sibling Index	Notes
`jackpot-runner-panel-desktop-spawner`	Lowest	Usually at the bottom
`container-jackpot-runner-mobile`	Middle	Between desktop and result panels
`jackpot-result-panel-spawner`	Highest	Always on top
:::
