doc-slot-core-manual/docs/02-setup-main-game/01-game-config.md

sidebar_position

sidebar_position
1

Game Configuration

The initial configuration requirements from the Slot Core.

---

While the core logic is responsible for calculations and maintaining the game state, it's the client's responsibility to define all game-specific information.

Let’s go step-by-step to define these elements.

Slot Items

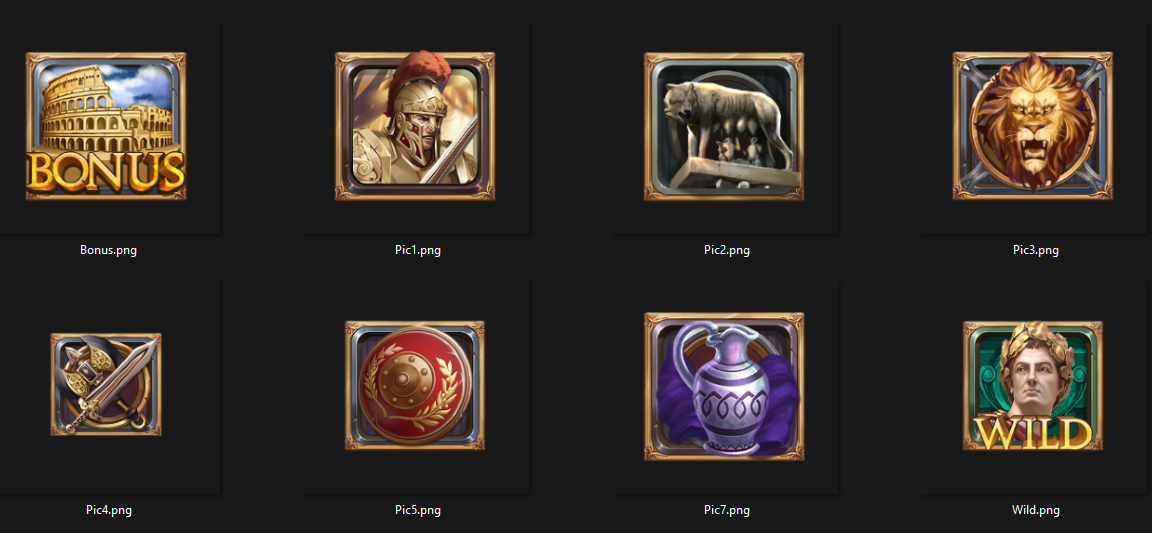

Each game features specific slot items displayed on the reel panel. By default, the Slot Core includes only two items: Wild and Scatter.

For Roma Legacy, there are 8 slot items total, including Wild.

To define the 7 additional items for this game, create the following script:

var SlottyItem = p4fslot.require('slotty-item');
var Enum = p4fslot.require('extendable-enum');

Enum.InitEnum(SlottyItem, [
    'Pic1',
    'Pic2',
    'Pic3',
    'Pic4',
    'Pic5',
    'Pic6',
    'Pic7',
    'Bonus'
]);

module.exports = SlottyItem;

Note: Item names are defined using the texture asset names, not the symbol names received from the server response.

Asset's name	Server Response
Pic1	PIC1
Pic2	PIC2
Pic3	PIC3
Pic4	PIC4
Pic5	PIC5
Pic6	PIC6
Pic7	PIC7
Bonus	BONUS

For example, if the server returns a symbol named BONUS, the game should display the Bonus asset.

To establish this mapping, use the following configuration script:

var HyperGamingConfig = require('hyper-gaming-config');
var SlottyItem = require('slotty-item');

HyperGamingConfig.itemMapper['BONUS'] = SlottyItem.Bonus;
HyperGamingConfig.itemMapper['PIC1'] =  SlottyItem.Pic1;
HyperGamingConfig.itemMapper['PIC2'] = SlottyItem.Pic2;
HyperGamingConfig.itemMapper['PIC3'] = SlottyItem.Pic3;
HyperGamingConfig.itemMapper['PIC4'] = SlottyItem.Pic4;
HyperGamingConfig.itemMapper['PIC5'] = SlottyItem.Pic5;
HyperGamingConfig.itemMapper['PIC6'] = SlottyItem.Pic6;
HyperGamingConfig.itemMapper['PIC7'] = SlottyItem.Pic7;

Slot Setting

There are two settings that determine the betting method used in the game:

• TypeBetConfig: this defines the bet calculation method. The available options are:
  • Way
  • Line
  • BetOptions
  • Dynaways
• TypePayline: this setting determines which text label is displayed in the game's UI. Each type corresponds to a different label:

  Type	Text Message
  Way	BET PER WAY
  Line	BET PER LINE
  BaseBet	PLAY MULTIPLIER

Depending on the requirements of your game, you can customize both Payline and BetConfig by adding the following script:

var BaseSlottySetting = p4fslot.require('slotty-setting');
var SlottyItem = require('slotty-item');
var SlottyParameter = p4fslot.require('slotty-parameter');

BaseSlottySetting.prototype._getDefaultTypePayline = function () {
    return SlottyParameter.TypePayline.Line;
};

BaseSlottySetting.prototype._getDefaultTypeBetConfig = function () {
    return SlottyParameter.TypeBetConfig.Line;
}

Default Slot Item Pattern

When the game is opened, the reel panel should display a default pattern that contains no possible win lines.

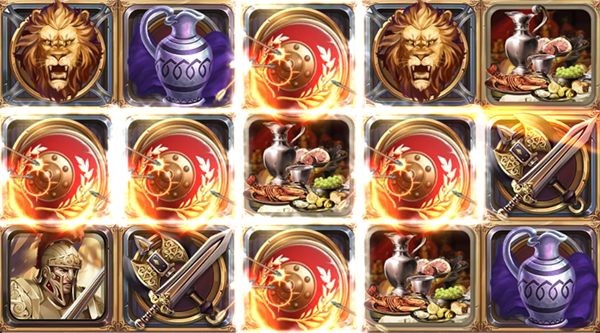

For instance, the following item pattern should not be used, as it contains two win lines:

To keep the gameplay experience fresh, the displayed pattern should be selected randomly each time. At a minimum, three non-winning patterns should be available.

To configure these patterns, add the following method to your extend-slotty-setting script:

BaseSlottySetting.prototype._getPatternNotWin = function () {
    return [
        [SlottyItem.Pic5, SlottyItem.Pic3, SlottyItem.Pic5, SlottyItem.Pic1, SlottyItem.Pic5,
        SlottyItem.Bonus, SlottyItem.Pic6, SlottyItem.Pic5, SlottyItem.Pic1, SlottyItem.Pic5,
        SlottyItem.Pic2, SlottyItem.Pic6, SlottyItem.Pic2, SlottyItem.Pic1, SlottyItem.Pic2
        ],
        [SlottyItem.Pic4, SlottyItem.Pic7, SlottyItem.Pic2, SlottyItem.Pic5, SlottyItem.Pic7,
        SlottyItem.Pic4, SlottyItem.Pic7, SlottyItem.Pic6, SlottyItem.Pic5, SlottyItem.Pic7,
        SlottyItem.Pic7, SlottyItem.Pic3, SlottyItem.Bonus, SlottyItem.Pic2, SlottyItem.Pic3
        ],
        [SlottyItem.Pic1, SlottyItem.Pic2, SlottyItem.Pic3, SlottyItem.Pic7, SlottyItem.Pic3,
        SlottyItem.Pic2, SlottyItem.Pic7, SlottyItem.Pic4, SlottyItem.Pic3, SlottyItem.Pic2,
        SlottyItem.Pic1, SlottyItem.Pic7, SlottyItem.Pic4, SlottyItem.Pic3, SlottyItem.Bonus
        ]
    ];
};

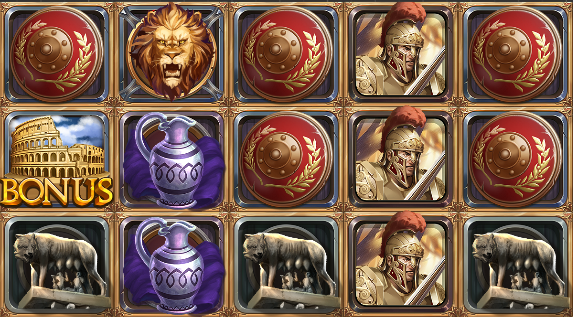

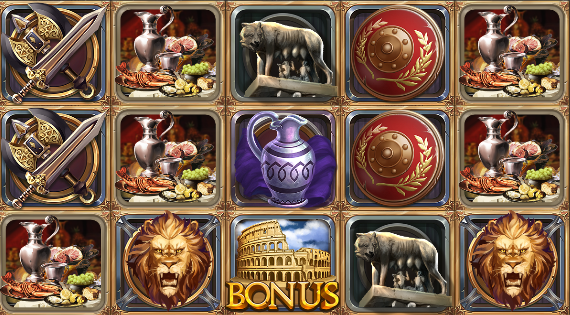

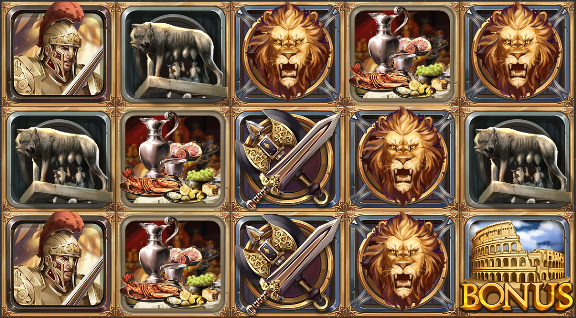

The results of those 3 patterns are shown below:

Pattern 1	Pattern 2	Pattern 3

Hyper Gaming Integration

The Slot Core supports both SmartFox and Hyper Gaming connections. For Hyper Gaming, we integrate specific modules using the DIContainer.

To connect and interact with the Hyper Gaming server, we need to register two key modules:

• hyper-gaming-config: manages the connection configuration for the Hyper Gaming server.
• hyper-gaming-server-handler: handles request and response data for game-server communication.

To register these, add the _registerInjection function in extend-slotty-setting.js:

var DIContainer = p4fcore.require('di-container');

BaseSlottySetting.prototype._registerInjection = function () {
    DIContainer.Register('serverConfig', require('hyper-gaming-config'));
    DIContainer.Register('serverHandler', p4fslot.require('hyper-gaming-server-handler'));
};

In addition to server modules, all Hyper Gaming projects should initialize the following handlers for sound, hotkey and UI interaction.

In the same extend-slotty-setting.js, add this function:

var HyperSoundHandler = require('sound-handler');
var UISoundHandler = require('ui-sound-handler');
var HyperHotkeyHandler = require('hyper-hotkey-handler');
var HyperNotificationHandler = require('hyper-notification-handler');

BaseSlottySetting.prototype._initializeParameter = function () {
    new UISoundHandler();
    new HyperSoundHandler();
    new HyperHotkeyHandler();
    new HyperNotificationHandler();
};
