Main Scene

This is where all the magic happen.

---

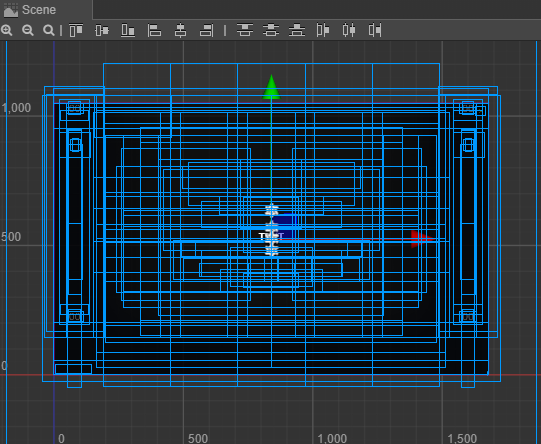

Main scene is the most complicated scene with hundreds of object, script and config.

Yet it is suprisingly simple to use.

By following step by step setup, you'll have a working main scene in no time.

:::info In fact, if all of the other scenes are setup properly, you can even run test the game without any setup on main scene.

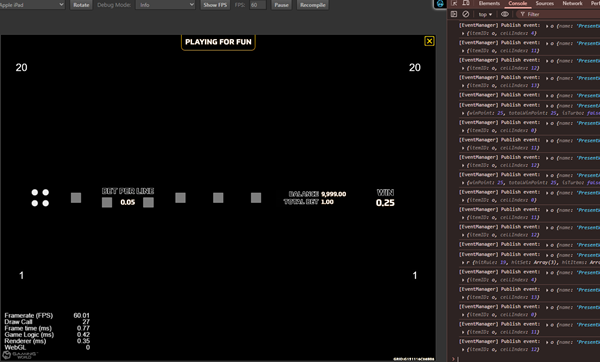

Try to run the project, you'll the result as below. It doesn't look like much but it is actually a game running without visual assets.

:::

Setup Reel Slot

---

1. Prepare the asset for symbols and reel frame.



2. Add symbols to SpriteFrameProvider which allows those symbols to be accessed globally from the code.

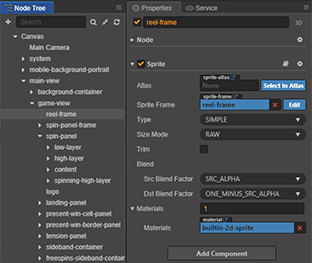

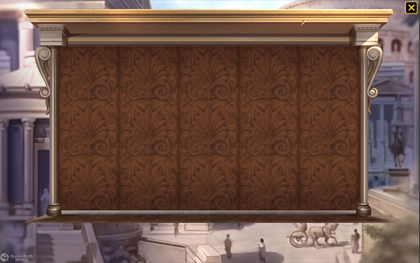

3. Add reel frame.

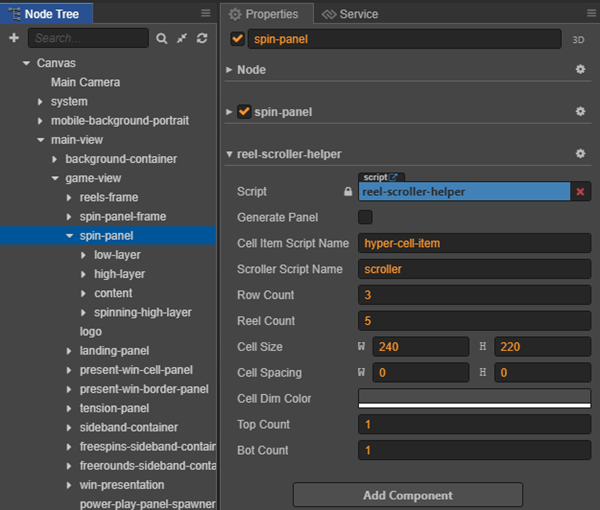

4. Config reel slot using reel-scroller-helper.



   Properties	Explaination	Example

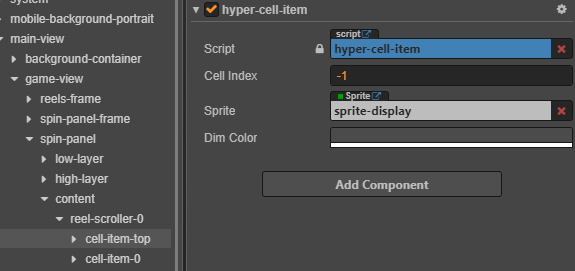

   Cell Item Script Name	The name of the script will be attached to each cell item.
   Scroller Script Name	the name of the script for handling the spinning logic.

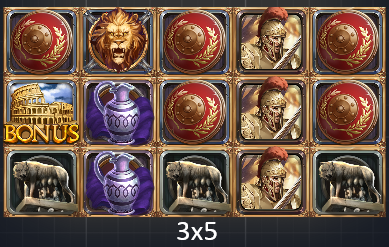

   Row Count x Reel Count	the number of Slot Item each row and column in the reel slot panel.
   Cell Size	the size of each cells.
   Cell Spacing	the distance between each cells horizontally and vertically.

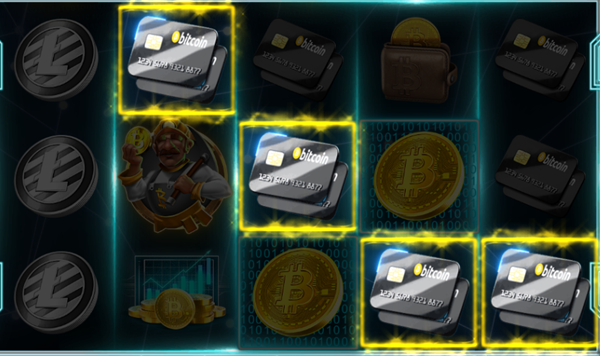

   Cell Dim Color	set the dark color for the non-win cells when showing winning animation for each line.

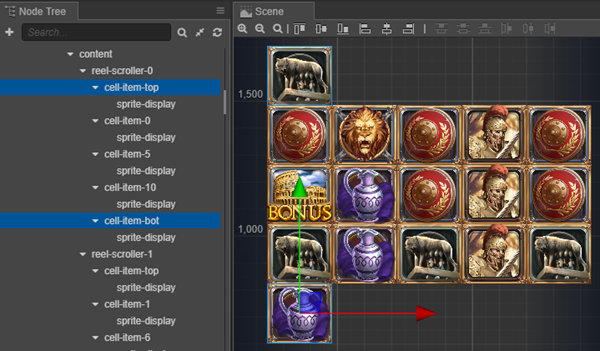

   Top Count and Bot Count	for spinning logic to work, a certain number of cell will be added to the top and bottom of the reel.

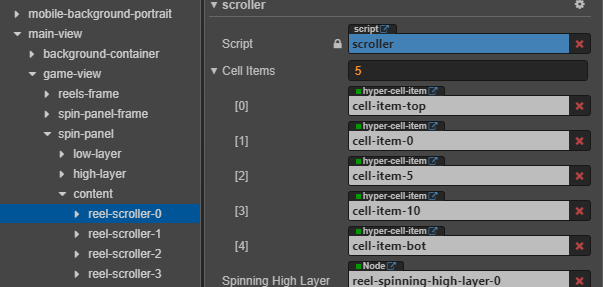

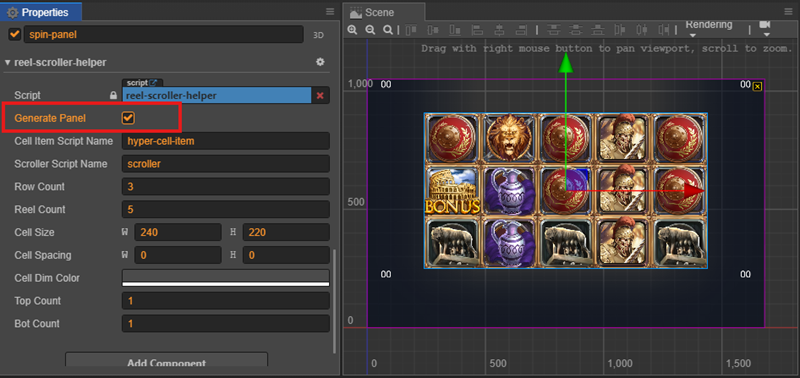

5. Generate panel using reel-scroller-helper.



:::tip There is a popup panel covering the entire game scene. You should turn off this panel to see the other component clearly. :::

Setup Spinning Panel

Reel slot panel is just one part one the spinning panel.

There are other panels that need to be setup: landing-panel, tension-panel, present-win-cell-panel and present-win-border-panel.

The setup is very straightforward by using the Generate Panel command in each panel's helper class.

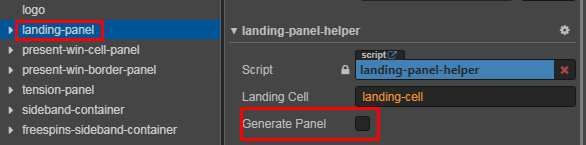

• Landing Panel:

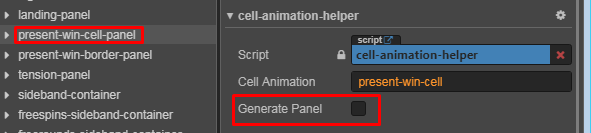

• Present Win Cell Panel:

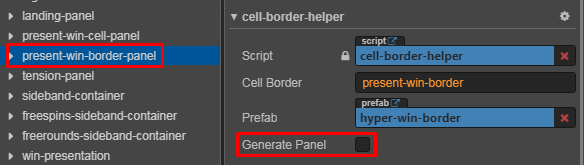

• Present Win Cell Panel:

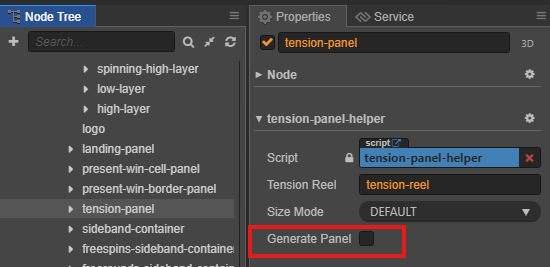

• Tension Panel:

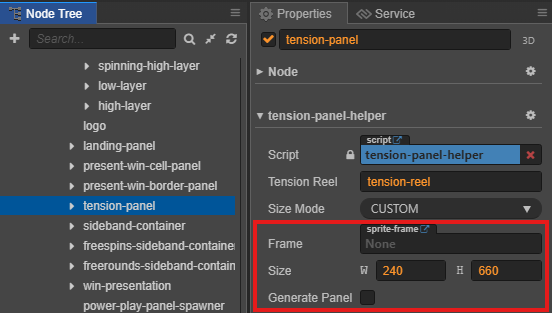

  If the tension use a custom size frame, we can change the option sizeMode to Custom and set the static frame and size.



Setup UI Panel

UI Panel Overview

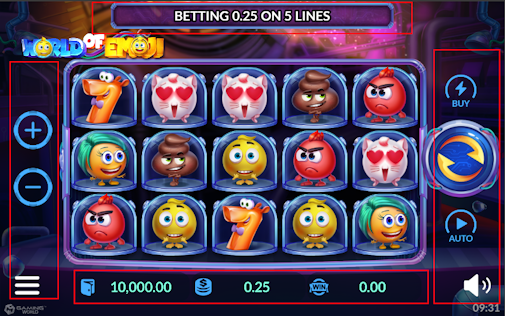

The UI system supports both desktop and mobile layouts design.

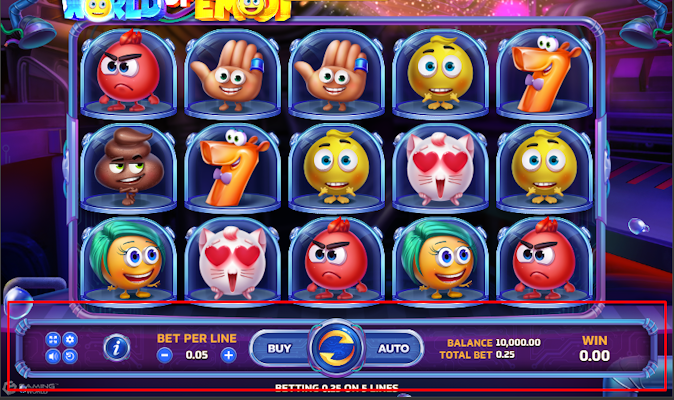

🖥️ Desktop Layout

• Full bottom bar with all controls visible
• Horizontal layout maximizing screen width

📱 Mobile Layout

The mobile interface adapts to both landscape and portrait orientations:

Orientation	Preview

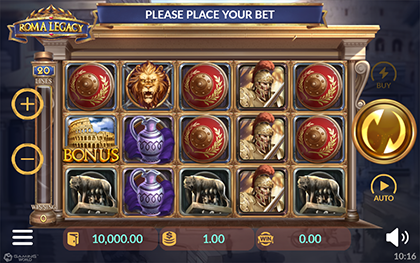

Landscape

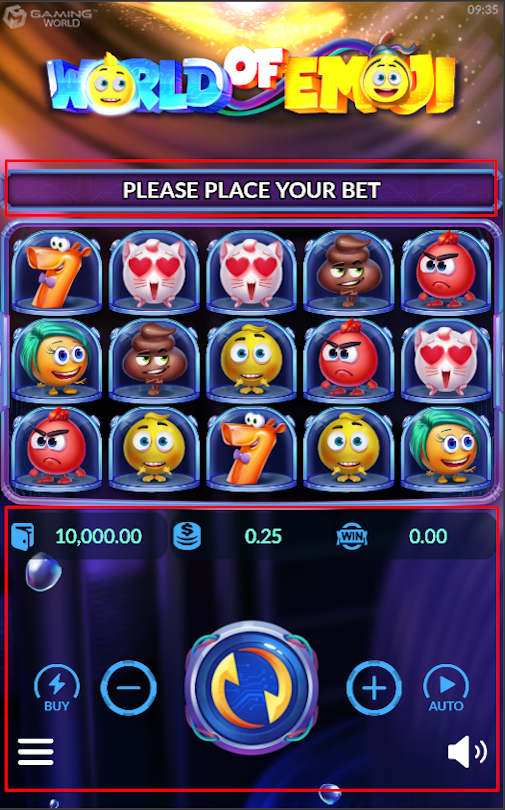

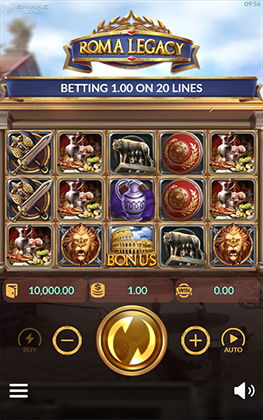

Portrait

UI Panel Desktop

Step 1: Setup Prefab Editor

Step	Action	image

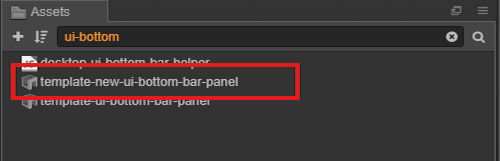

1. Locate Prefab	Search for ui-bottom-bar-panel prefab
2. Copy Assets	Navigate from core/editor directory
3. Place Assets	Copy / Paste to game assets location

---

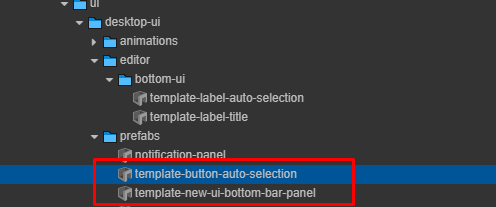

Step 2: Configure Prefabs

Core Prefabs Structure

Navigate to the location where the prefabs:

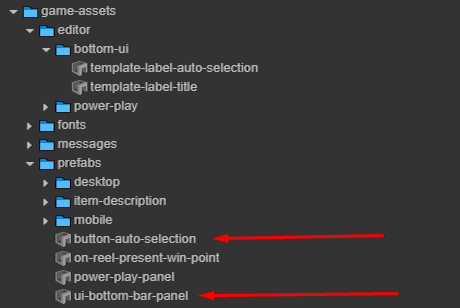

Rename Prefabs

Rename the copied prefabs by removing unnecessary prefixes:

Prefix to Remove	Original Prefab Name	Final Name
template-new-	template-new-ui-bottom-bar-panel	ui-bottom-bar-panel
template-	template-button-auto-selection	button-auto-selection

    assets\game-assets\prefabs

Customize button-auto-selection Label

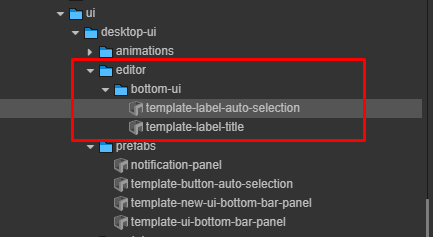

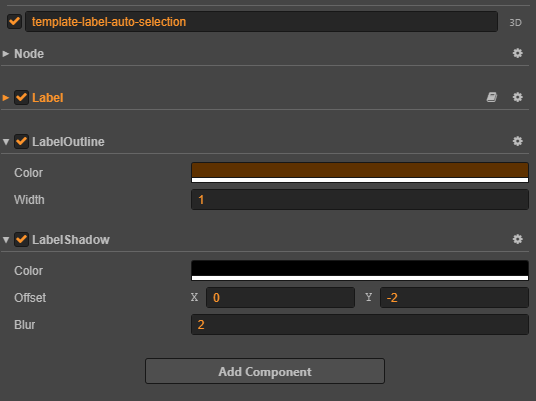

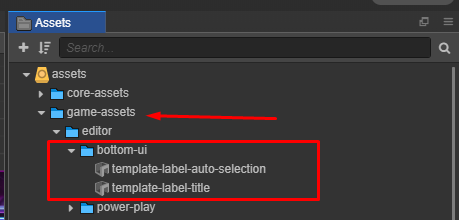

Follow Design: Use the template-label-auto-selection to customize the appearance of the label inside the button-auto-selection prefab.

Component	Description
Label Outline	Add an outline to make the text stand out.
Label Shadow	Add a shadow for better contrast and readability.
--------------------	-------------------------------------------------

Customize ui-bottom-bar-panel Label

Use template-label-title to customize the ui-bottom-bar-panel:
:::info Follow the same configuration as Button Auto Selection Labels

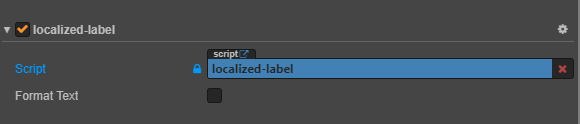

Bottom bar labels include a localization component for multi-language support
:::

The FormatText property controls text formatting behavior for label components:

Property	Description	Example
default	Initial formatting state	false
notify	Formatting update callback	Updates when value changes

---

Step 3: Setup Ui In Main Scenes

Create new node and configuration in your main scene:

Platform Node Spawner Settings

Setting	Value	Description
Desktop Toggle	✓ Enabled	Show prefabs for desktop platform
Mobile Toggle	☐ Disabled	Hide prefabs for mobile platform
Target Prefab	ui-bottom-bar-panel	References prefab

Step 4: Apply Textures

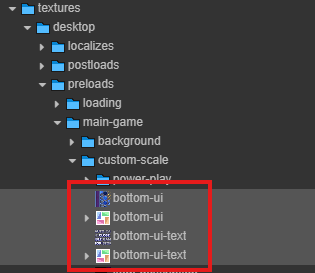

Texture Button Bar

✅ Checklist assets completed for bottom UI and button UI text
🔗 Follow is by Complete Assets Structure Guide:

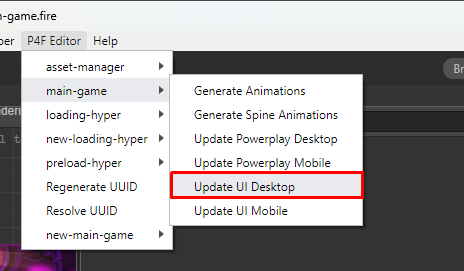

Run the Helper Tool

• Open the UI Desktop Helper
• Select texture assignment options


Verify Results

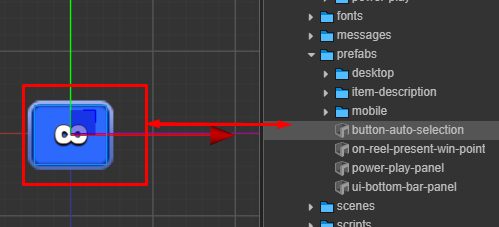

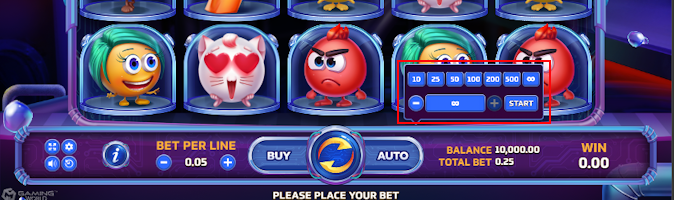

Auto Selection prefab

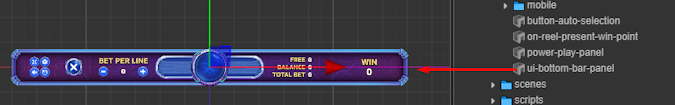

Bottom Bar prefab

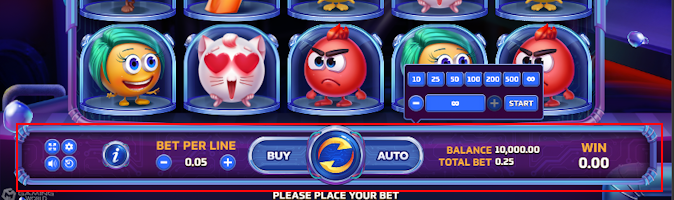

In game

---

UI Panel Mobile

Step 1: Setup Prefab

Step	Action	image

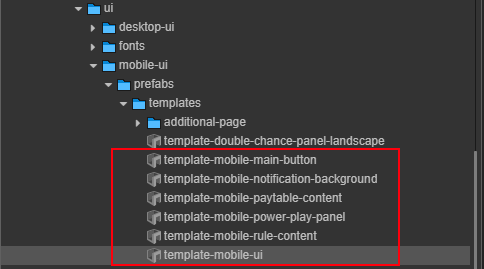

1. Locate Prefab	Search for mobile-ui prefab
2. Place Assets	Copy to game assets location

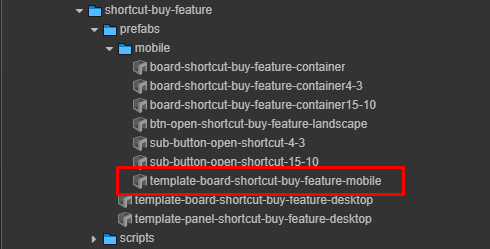

3. Locate Prefab	Search for buy-feature prefab

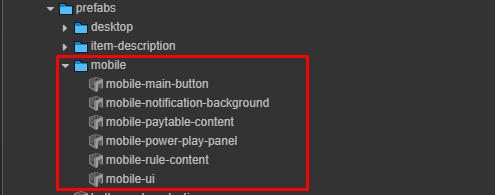

Step 2: Rename Prefabs

    assets\game-assets\prefabs\mobile

Rename the copied prefabs by removing unnecessary prefixes:

Prefix to Remove	Final Name
template-

Step 3: Setup Ui In Main Scenes

Create new node and configuration in your main scene:

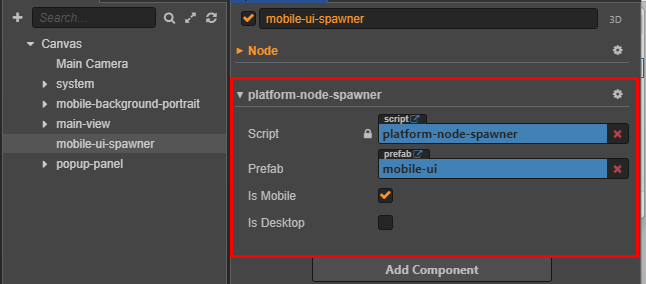

Platform Node Spawner Settings

Setting	Value	Description
Mobile Toggle	✓ Enabled	Show prefabs for mobile platform
Desktop Toggle	☐ Disabled	Hide prefabs for desktop platform
Target Prefab	mobile-ui	References prefab

Step 4: Apply Textures

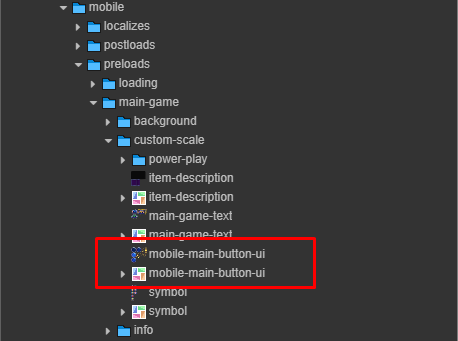

Texture Mobile Ui

✅ Checklist assets completed for Mobile UI
🔗 Follow is by Complete Assets Structure Guide:

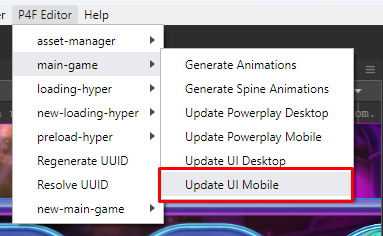

Run the Helper Tool

• Open the UI Mobile Helper
• Select texture assignment options

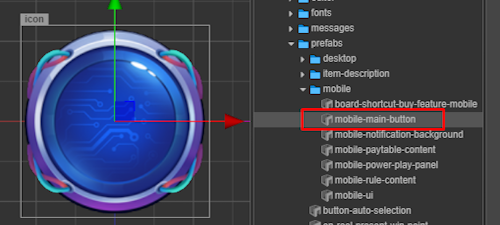

Results

main ui button added textures
| |

Step 4: Setup Color For Menu Mobile UI

Follow Design:

Overview

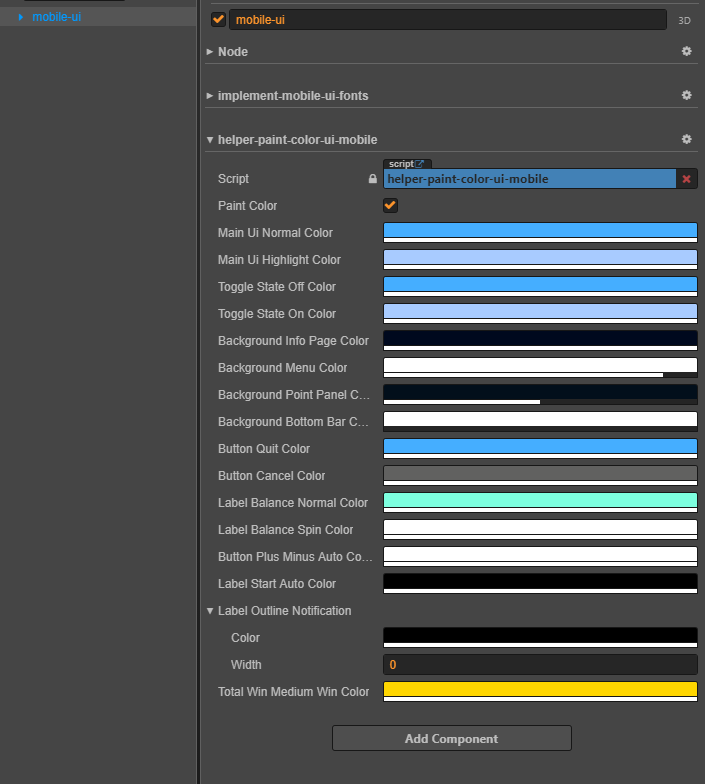

The helper-paint-color-ui-mobile.js component is a customizable color painter for various UI elements in a MOBILE UI. It allows designers and developers to easily apply theme-based colors across the game interface.

Ordinal number	Properties	Explaination	Example

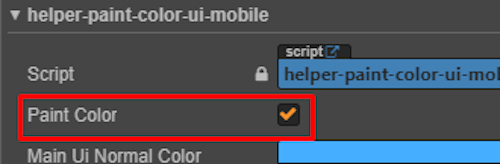

0	paintColor	Trigger to repaint UI components
1	Main Ui Normal Color	Default color of UI elements
2	Main Ui Highlight Color	Highlight color for selected UI elements
3	Toggle State Off Color	Color of toggle when off
4	Toggle State On Color	Color of toggle when on

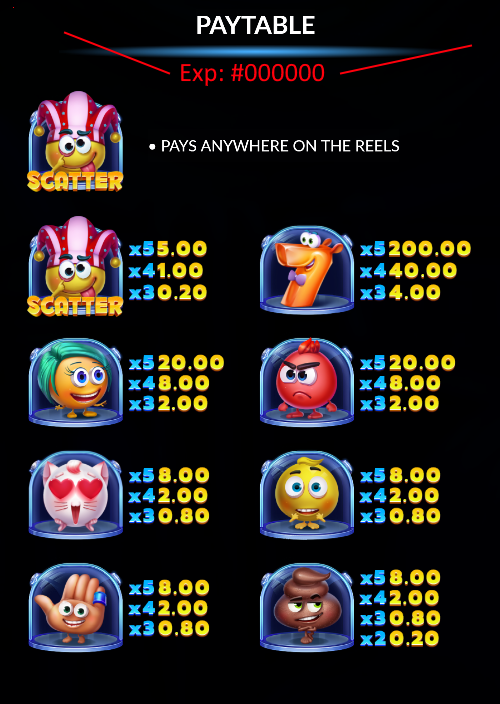

5	Background Info Page Color	Info screen background

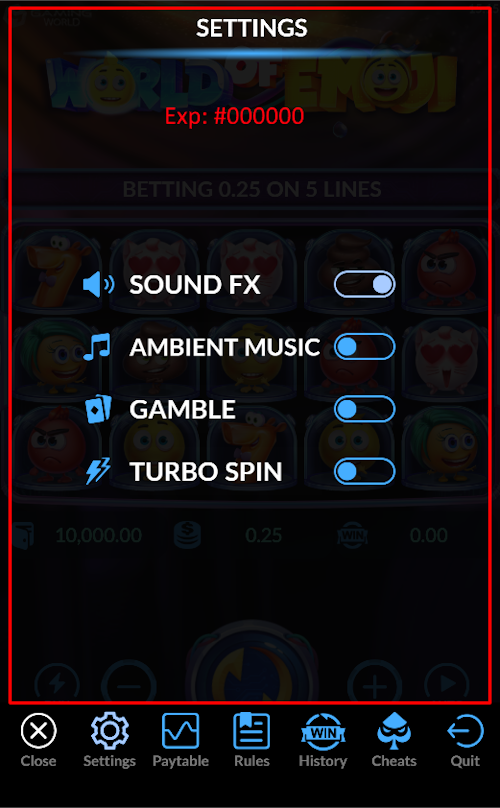

6	Background Menu Color	Menu background color
7	Background Point Panel Color	Background panel for point/balance UI
8	Background Bottom Bar Color	Background bottom bar (show only mobile portrait)

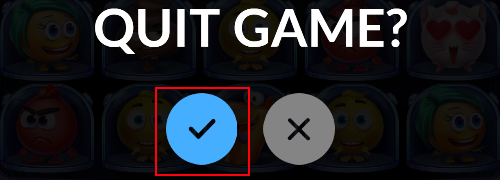

9	Button Quit Color	Quit button color

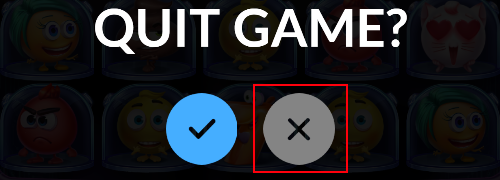

10	Button Cancel Color	Cancel button color
11	Label Balance Normal Color	Normal balance label color
12	Label Balance Spin Color	During-spin label color
13	Button Plus Minus Auto Color	Button plus/Minus autoplay
14	Label Start Auto Color	Start autoplay label
15	Label Outline Notification	Outline color + width config
16	Total Win Medium Win Color	Color for medium win effects

---

Setup Background

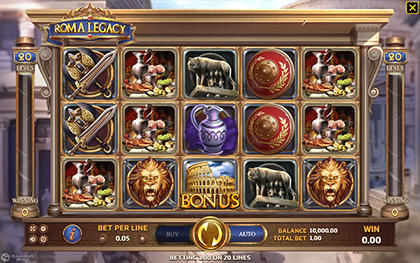

Background overview:

	Desktop	Mobile

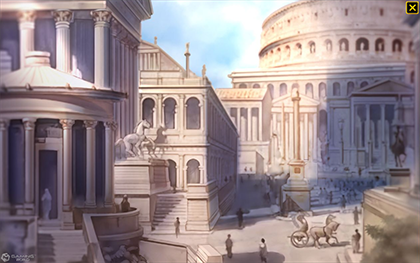

Background Landscape
Background Portrait

Background landscape use for Desktop and Mobile landscape.

Background portrait only use for Mobile portrait.

Prepare the assets

	Assets	Description
Static		Static background is necessary for the game
Animation		Animation background may or may not be present, depending on the game design

Background Landscape

We use sprite frame background for landscape from prepared assets.

![Background Setup Landscape](./img/05-main-scene/bg-setup-landscape.png)

Background Portrait

We use sprite frame background for mobile from prepared assets.

![Background Setup Portrait](./img/05-main-scene/bg-setup-portrait.png)

Background Animation

If the game have design animation for background, we will do this step.

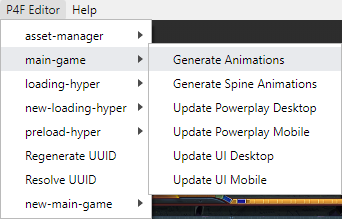

1. Using hepler to generate animation from prepared assets

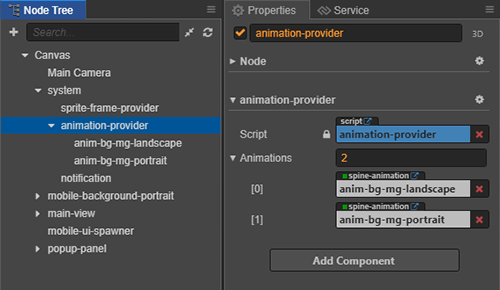

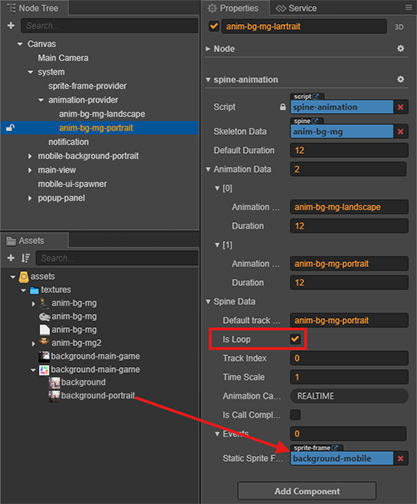

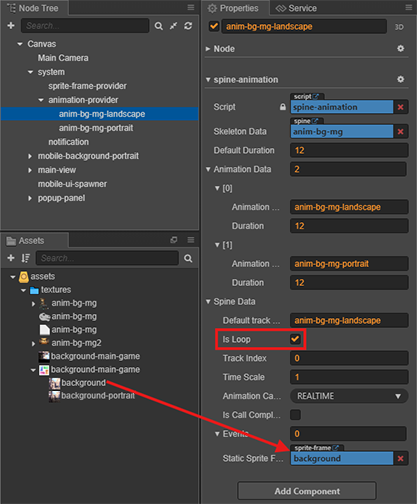

2. We have the result as below, and continue setup for spine-animation.

   • Is Loop: is ✅ because this animation will play through the game.
   • Static Sprite Frame: It will be displayed when the animation has not finished loading.



3. Add animation background with component below:

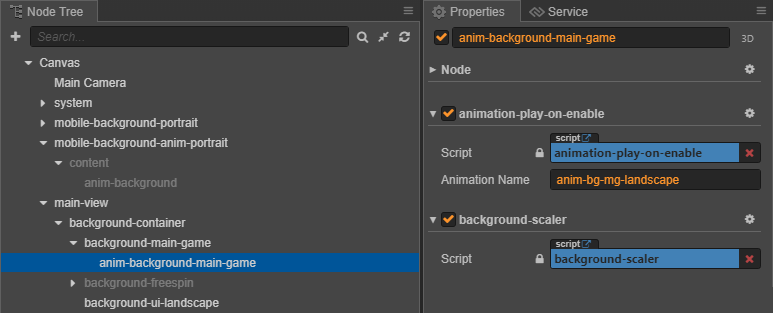

   Animation background landscape

   • Create Empty Node with name anim-background-main-game.
   • Add animation-play-on-anable with animation name in Animation Provider.
   • Add background-scaler resize with screen resolution.



   Animation background portrait

   • Create Empty Node with name mobile-background-anim-portrait.
   • Add mobile-portrait-background-ui-controller to display only on Mobile.
   • Add orientation-ui-controller to display on Portrait with the options below.



   • Create Empty Node with name anim-background-main-game.
   • Add animation-play-on-anable with animation name in Animation Provider.
   • Add portrait-anim-background-scaler resize with screen resolution.



Setup Popup Panel

To Be Added:

• Prepare the asset
• Run helper / p4f menu or setup manually
