Info Pages

Info Pages (Information Pages) provide players with essential details about how the game works. It helps player understand the rules, features, symbols, payout structures, and other gameplay mechanics.

---

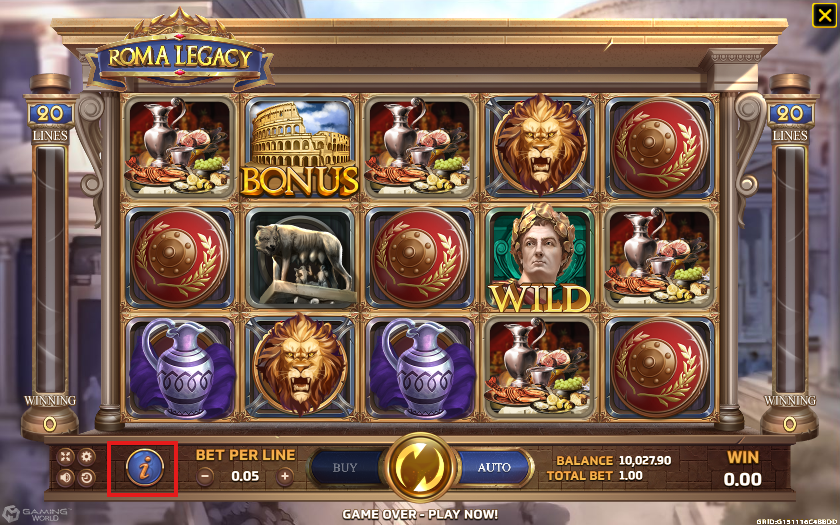

Overivew

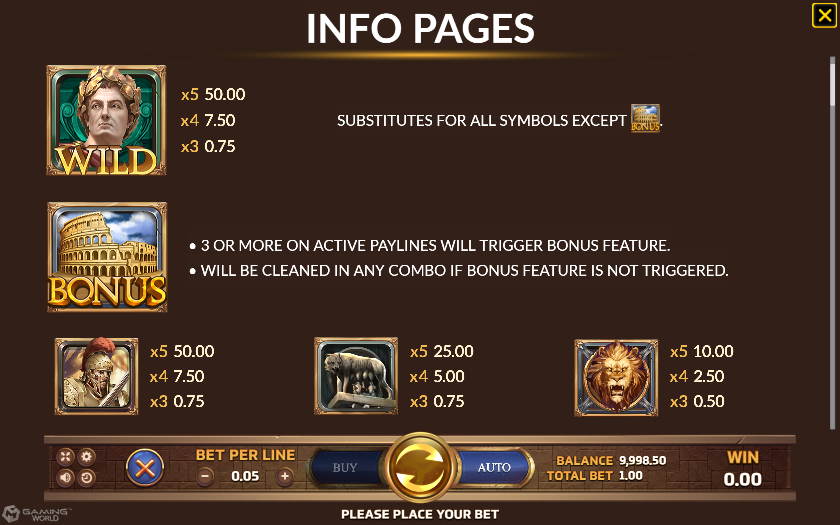

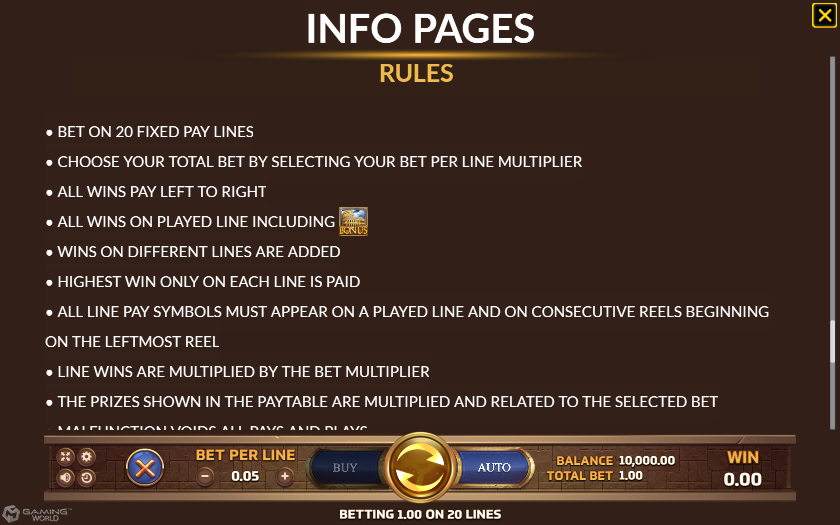

• Desktop consists Paytable and Rules in Info Pages.

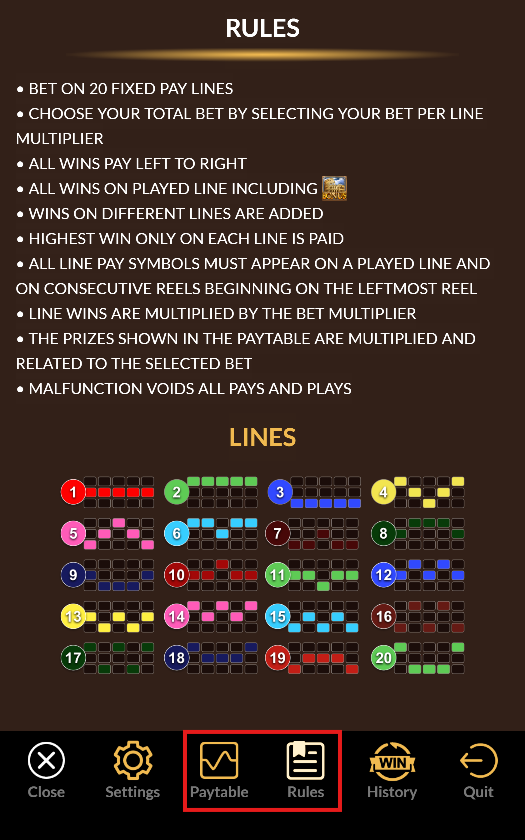

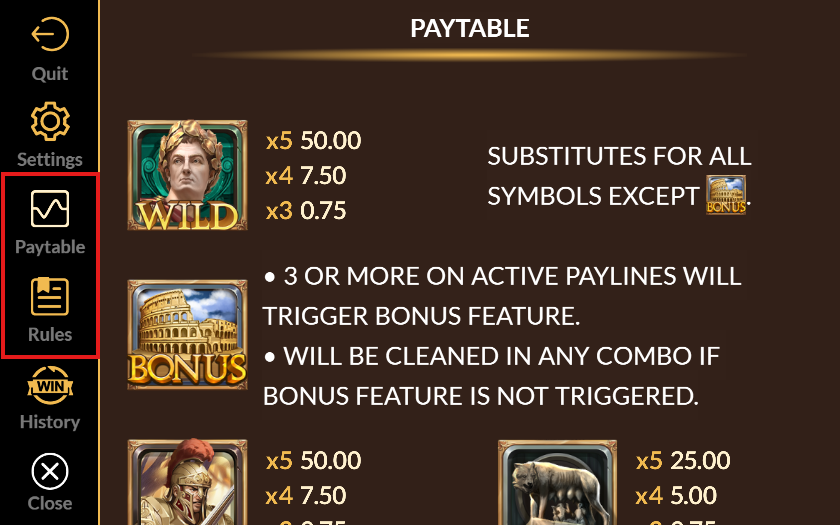

• Mobile is divided into 2 parts Paytable and Rules

Desktop	Mobile

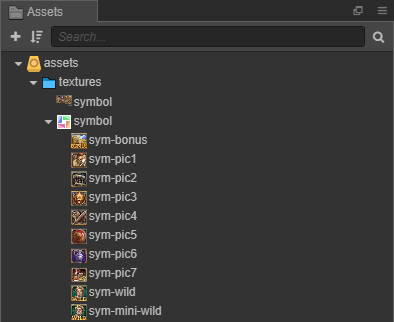

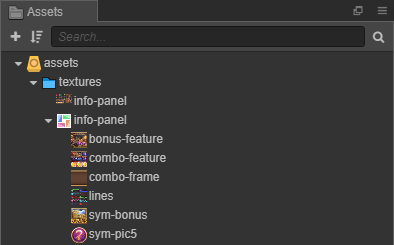

Prepare the assets

Assets	Description
	Used to setup Rules or image in RichText
	Used to setup Paytable

Setup Prefabs Desktop

Step	Action	Description	Image Reference

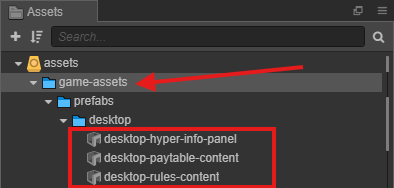

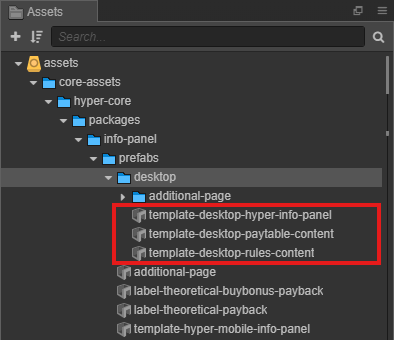

1	Locate all template prefabs need for Info Pages Desktop	Search for the desktop-hyper-info-panel prefab
2	Clone assets	Copy/Pase to game assets location, then rename the copied prefabs by removing unnecessary prefixes.

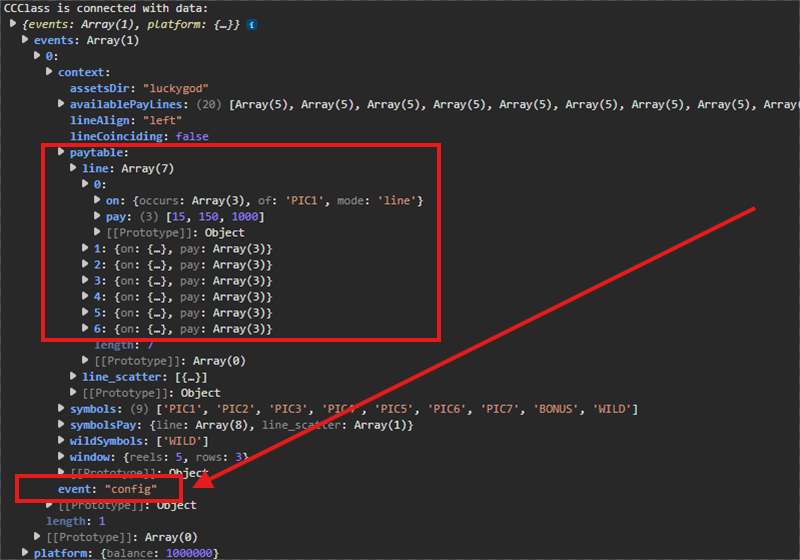

3	Get settings config	- Run DevTools on Browser. - On tab Console, find message with event = config. - Get values in context = paytable to setup for Item Payout with Item name and Odds

desktop-info-panel

| Step | Action | Image Reference |
    | :--: | :----- | :-------------: |
    | 1 | Change **Color** in `page-background` follow the game design..| <img width="400"/>![Locate Prefabs](./img/09-info-pages/configure-panel-1.png) |
    | 2 | Change **Color** in `menu-header-background` follow the game design. | ![Locate Prefabs](./img/09-info-pages/configure-panel-2.png) |
    | 3 | Update **Prefab** in `paytable-content` from prepared prefabs. | ![Locate Prefabs](./img/09-info-pages/configure-panel-3.png) ||
    | 4 | Update **Prefab** in `rules-content` from prepared prefabs..| ![Locate Prefabs](./img/09-info-pages/configure-panel-4.png) |

desktop-paytable-content

• Paytable: Consist Item with Payout and Item with Description

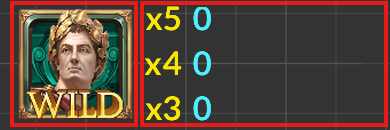

  • Setup Item with Payout

    Step	Action	Image Reference

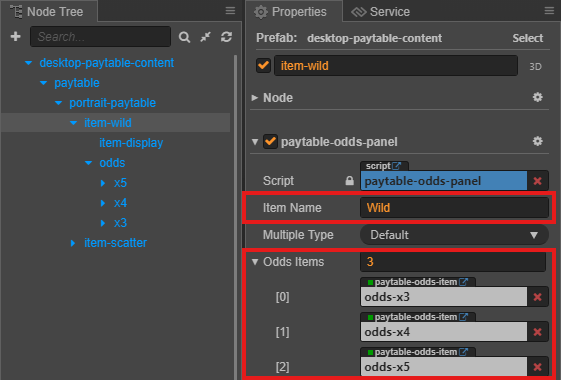

    1	Setup Item with Item Name and Odds Items follow the game design.
    2	Setup Sprite Frame in item-display same name with item from prepared assets.

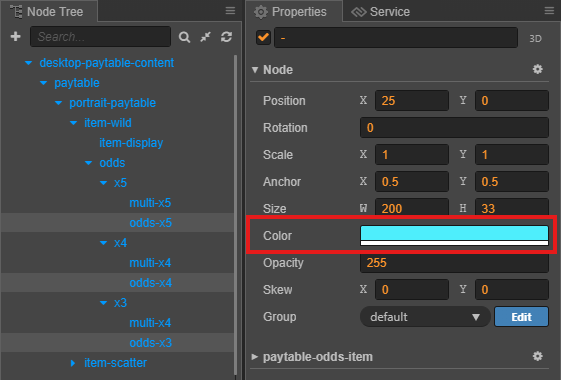

    3	Change Color in multi-x... oods-x... follow the game design.

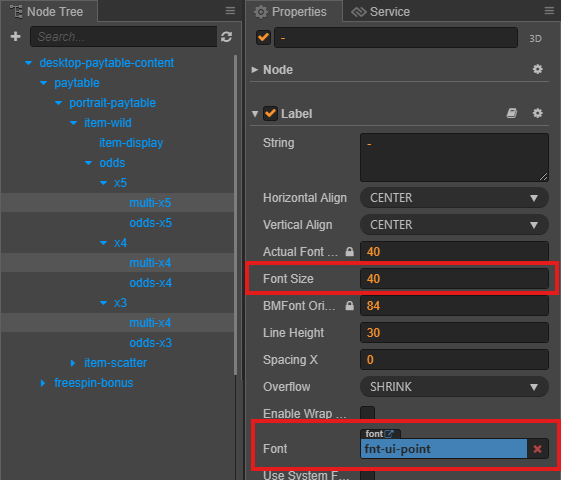

    4	- Change Font and Font Size in multi-x... oods-x... follow the game design. - Use Bitmap Font Creator to create Font Bitmap if you need it.

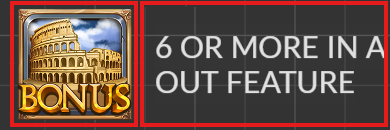

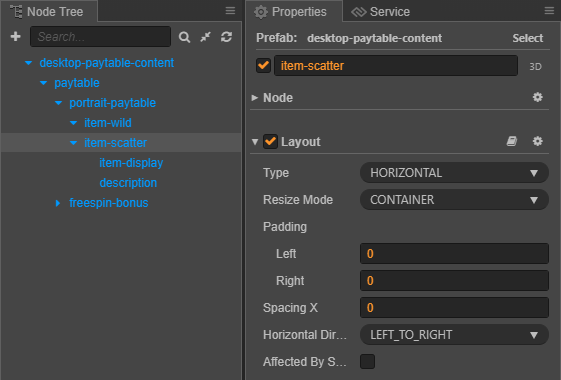

  • Setup Item with Description

    Step	Action	Image Reference
    1	Setup Item with Name follow the game design.

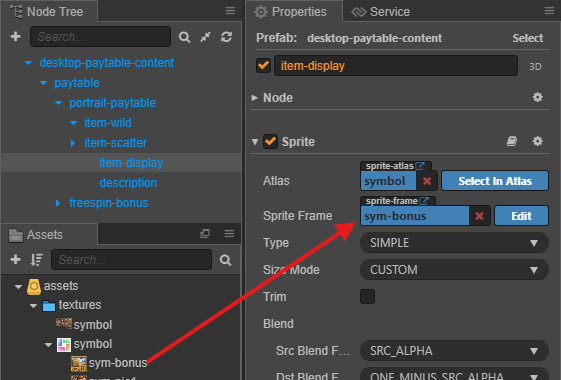

    2	Setup Sprite Frame in item-display same name with item from prepared assets.

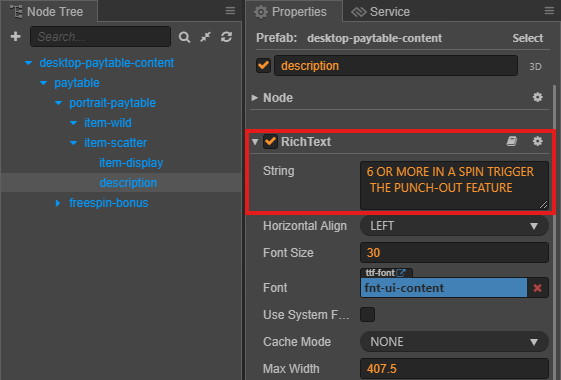

    3	Change String in description follow the game design.

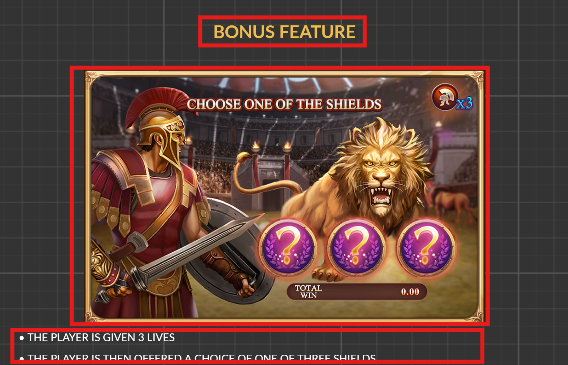

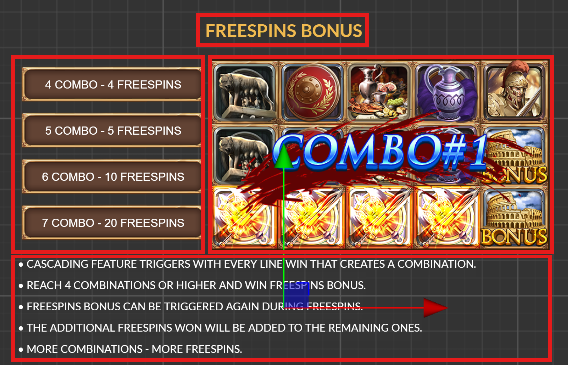

• Feature Game:

  Depending on each game, there will be different feature: FREESPIN BONUS, BONUS FEATURE, ...

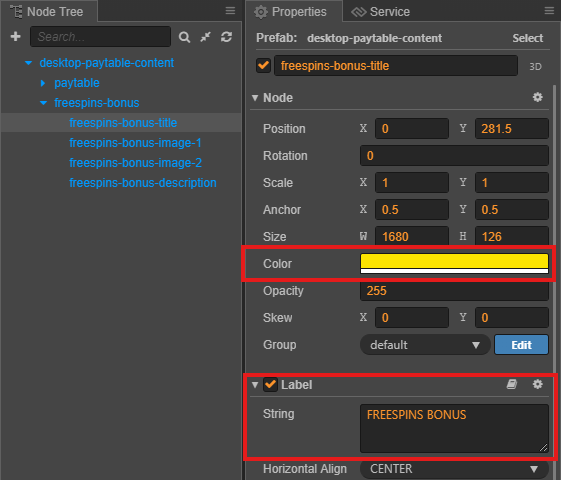

  • Title : Change String and Color in freespins-bonus-title follow the game design.
  • Image : Setup Sprite Frame freespins-bonus-image-... use from prepared assets.

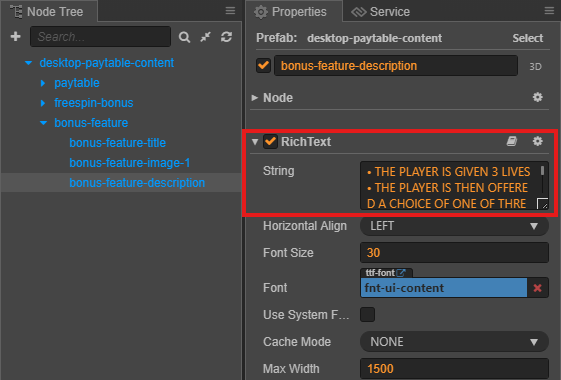

  • Description: Change String in freespins-bonus-description ollow the game design.

Overivew	Configure

desktop-rules-content

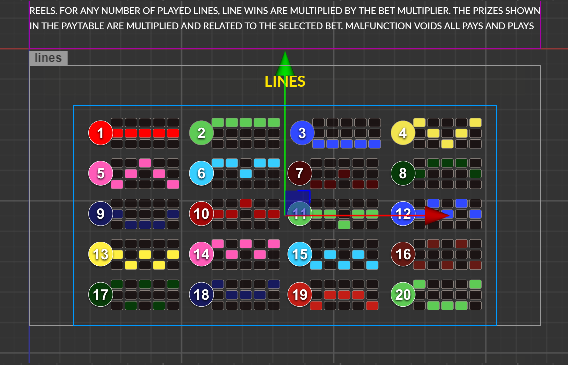

There are 2 types: **LINES** and **DYNAWAYS**

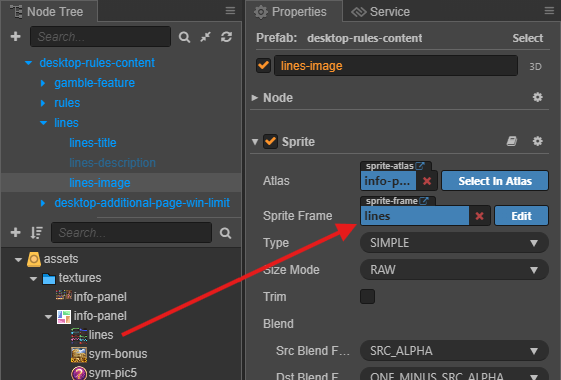

1. Setup **Sprite Frame** in `lines-image` from prepared assets.

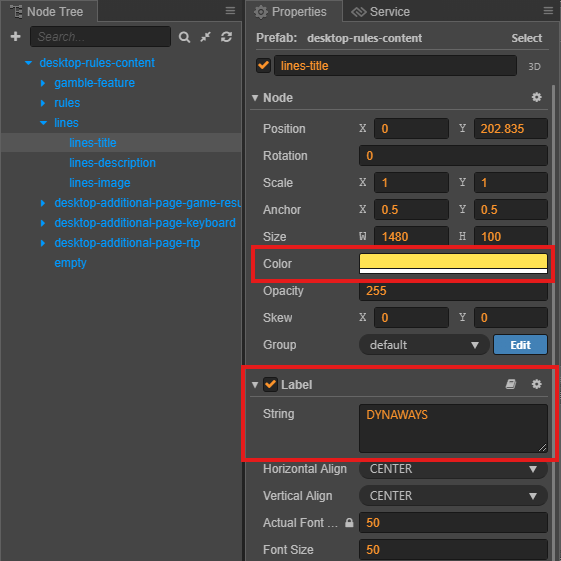

2. Change **Color** in `lines-title` follow game desgin.

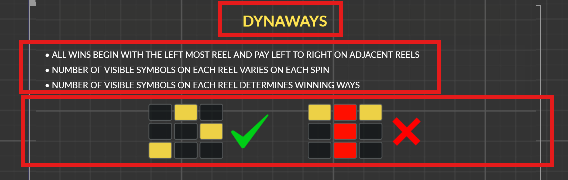

3. If the game is **Dynaways**
    - Change **String** in `lines-title` is **DYNAWAYS**.
    - Enable and update **String** in `lines-description`.

Overivew	Configure

Setup Prefabs Mobile

Step	Action	Description	Image Reference

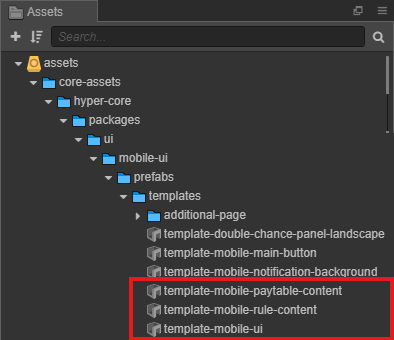

1	Locate all template prefabs need for Info Pages Mobile	Search for the mobile-ui prefab

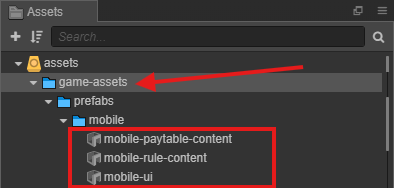

2	Clone assets	Copy/Pase to game assets location, then rename the copied prefabs by removing unnecessary prefixes.
3	Configure prefabs	We will do the same as configure for desktop.

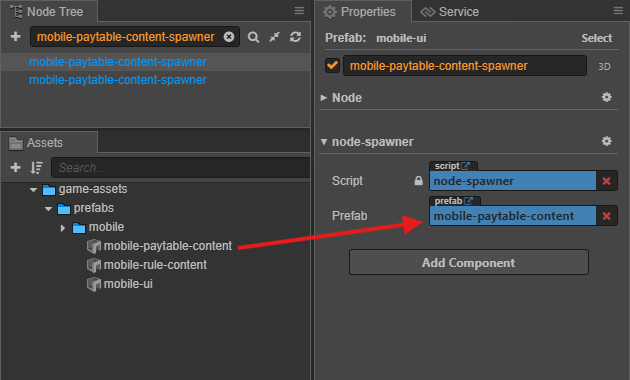

4	Locate Paytable spawner position in mobile-ui, then use prefab configured.	Search for the mobile-paytable-content-spawner in mobile-ui prefab.

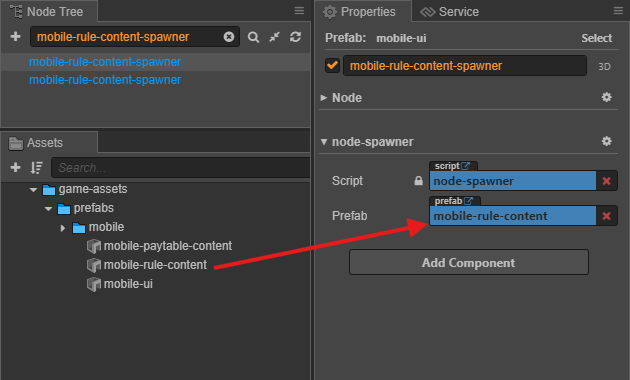

5	Locate Rules spawner position in mobile-ui, then use prefab configured.	Search for the mobile-rule-content-spawner in mobile-ui prefab.
