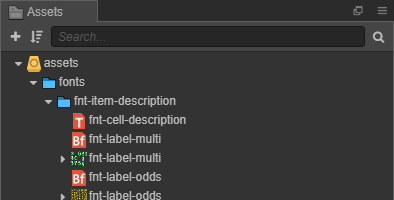

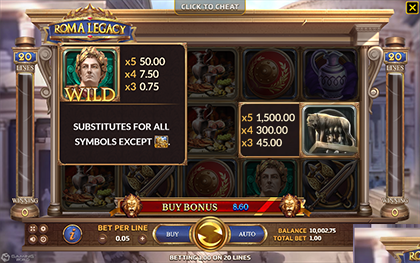

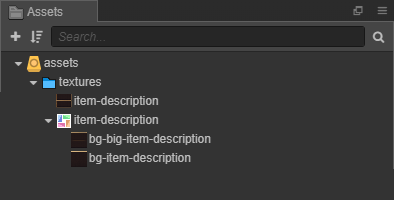

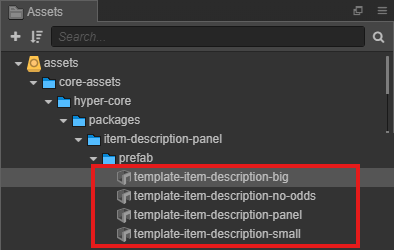

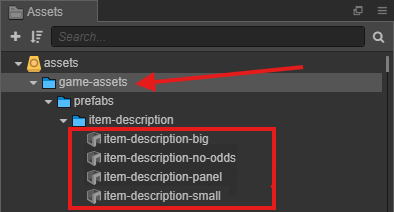

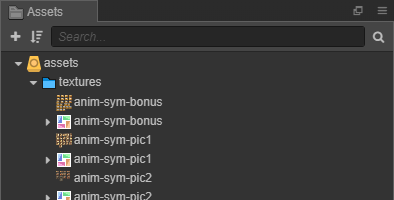

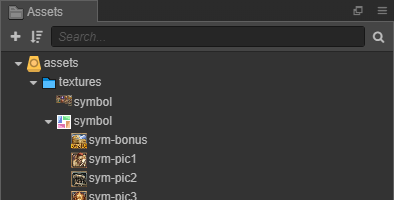

--- sidebar_position: 7 --- # Item Description Provides players with detailed information about each item in the game. --- ## Overview ![Item Description Overview](./img/07-item-description/overview.png) ## Prepare the assets | Assets | Description | |--------|-------------| | ![Info Page Prepare Assets](./img/07-item-description/prepare-assets-1.png) | Used to Setup the background. | | ![Info Page Prepare Assets](./img/07-item-description/prepare-assets-2.png) | Used to Setup the static symbol. | | ![Info Page Prepare Assets](./img/07-item-description/prepare-assets-3.png) | Used to Setup the animation symbol. | | ![Info Page Prepare Assets](./img/07-item-description/prepare-assets-4.png) | Used to Setup the payout/description. | ## Setup Prefabs Item Description | Step | Action | Description | Image Reference | | :--: | :----- | :---------- | :-------------: | | 1 | Locate all template prefabs needed for the **Item Description** | Search for the `template-item-description` prefab. | ![Locate Prefabs](./img/07-item-description/prepare-prefabs-1.png) | | 2 | Clone assets| Copy and paste them to the game assets location, then rename the copied prefabs by removing unnecessary prefixes. | ![Locate Prefabs](./img/07-item-description/prepare-prefabs-2.png) | ### item-description-small Setup the `item-description-small` prefab for items have a win payout: ![Locate Prefabs](./img/07-item-description/setup-item-small-overview.png) | Step | Action | Image Reference | | :--: | :----- | :-------------: | | 1 | - Setup the **Sprite Frame** in the `background` using the prepared assets. | ![Locate Prefabs](./img/07-item-description/setup-item-small-1.png) | | 2 | - Name the item prefab following the format item-description-**name**".

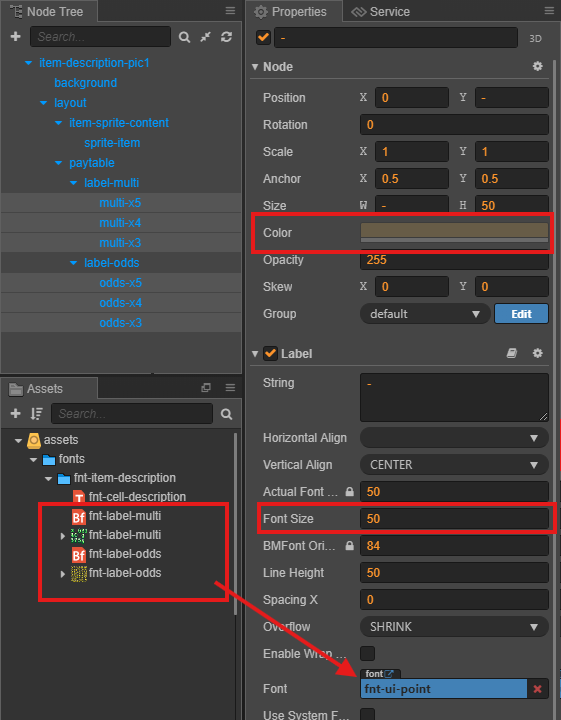

- Setup the **Animation Name** to match the item's name in the **Animation Provider**.| ![Locate Prefabs](./img/07-item-description/setup-item-small-2.png) | | 3 | - Setup the **Sprite Frame** in the `sprite-item` using the same name as the item from the prepared assets. | ![Locate Prefabs](./img/07-item-description/setup-item-small-3.png) | | 4 | - Adjust **Color**, **Font** and **Font Size** in `multi-x...` and `oods-x...` according to the game design.

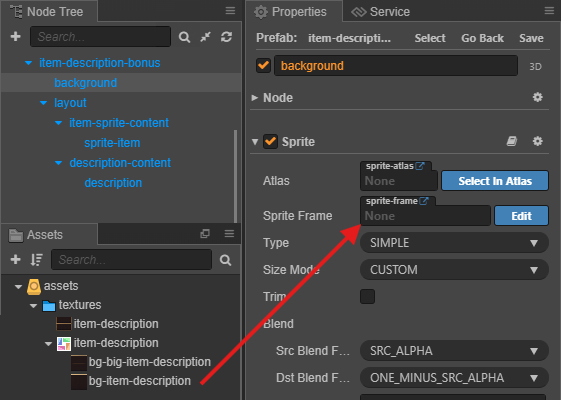

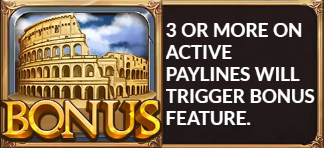

- Use [Bitmap Font Creator](http://localhost:3000/docs/category/game-asset-structure) if you need to create a Bitmap Font.| ![Locate Prefabs](./img/07-item-description/setup-item-small-4.png) | ### item-description-no-odds Setup the `item-description-no-odds` prefab for items that have a description but no win payout: ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-overview.png) | Step | Action | Image Reference | | :--: | :----- | :-------------: | | 1 | - Setup the **Sprite Frame** in the `background` using the prepared assets. | ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-1.png) | | 2 | - Name the item prefab following the format item-description-**name**".

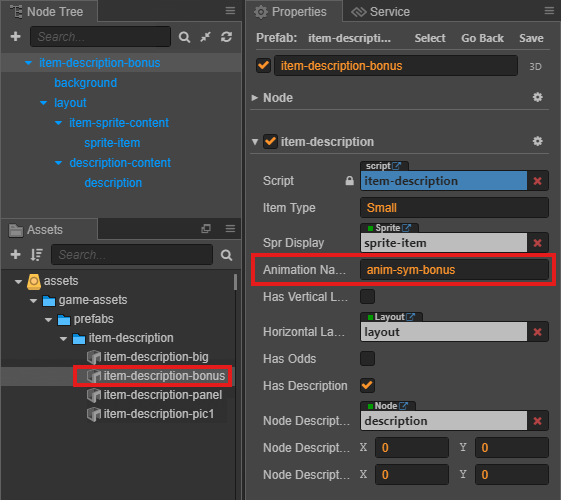

- Setup **Animation Name** to match the item's name in the **Animation Provider**.| ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-2.png) | | 3 | - Setup the **Sprite Frame** in the `sprite-item` using the same name as the item from the prepared assets. | ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-3.png) | | 4 | - Set the **String** and adjust **Color**, **Font** and **Font Size** in the `description` according to the game design.

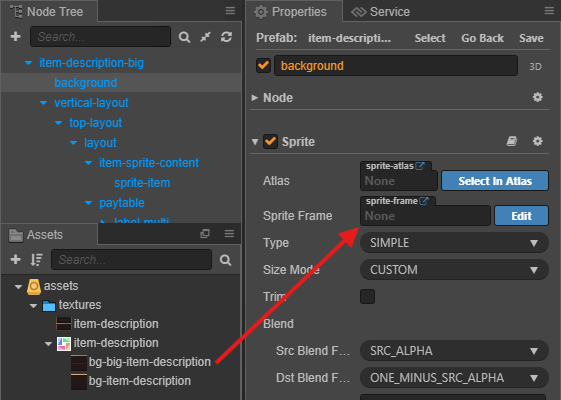

- Use [Bitmap Font Creator](http://localhost:3000/docs/category/game-asset-structure) if you need to create a Bitmap Font. | ![Locate Prefabs](./img/07-item-description/setup-item-no-odds-4.png) | ### item-description-big Setup the `item-description-big` prefab for items that include both a win payout and a description: ![Locate Prefabs](./img/07-item-description/setup-item-big-overview.png) | Step | Action | Image Reference | | :--: | :----- | :-------------: | | 1 | - Setup the **Sprite Frame** in the `background` using the prepared assets. | ![Locate Prefabs](./img/07-item-description/setup-item-big-1.png) | | 2 | - Setup the payout by following **Step 4** in **Setup prefab `item-description-small`** | [Configure Item Description Small](./item-description#item-description-small) | | | 3 | - Setup the description by following **Step 4** in **Setup prefab `item-description-no-odds`** | [Configure Item Description No Odds](./item-description#item-description-no-odds) | | :::tip Use Helper to setup: 1. Setup **Content Size** and **Cell Item Size** according to the game design. 2. Use prepared bitmap fonts to Setup the **Labels** font. 3. Click **Set Size** to run the helper. 4. Setup the **Background**, **Sprite Frame**, **Animation**, **Payout**, **Description** of the item using the prepared assets. ![Locate Prefabs](./img/07-item-description/setup-item-helper.png) :::
