# Free Spin

## Overview
The **Free Spin (or Free Games) Feature** awards players a set number of spins without requiring additional bets. During these spins, players can still win prizes—often larger than in the base game—without spending any of their own credits.
![Free Spin Overview](./img/freespins/fs-trigger.jpg)

## Implementation Guide

### Prepare Assets

| Component Type         | Description                                       | Visual |
|------------------------|---------------------------------------------------|--------|

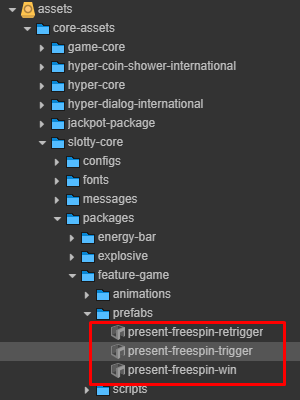

| **Core Components**    | Locate the prefabs from the core package.         | ![Core Prefabs](./img/freespins/freespin-prefabs-core.png) |

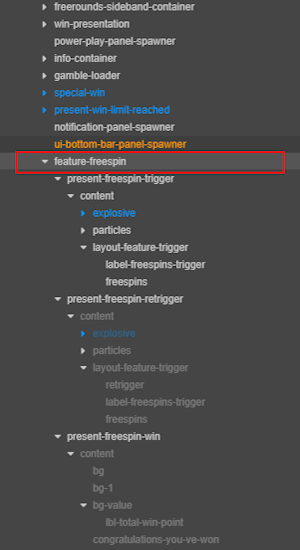

| **Game-Specific Components** | Prefabs are already present in the main game scene. | ![Game Prefabs](./img/freespins/freespin-prefabs-game.png) |

---

### Setup Scene

#### Structure Free Spins

Your scene should include the following nodes:

- **Trigger**
- **Retrigger**
- **Win**

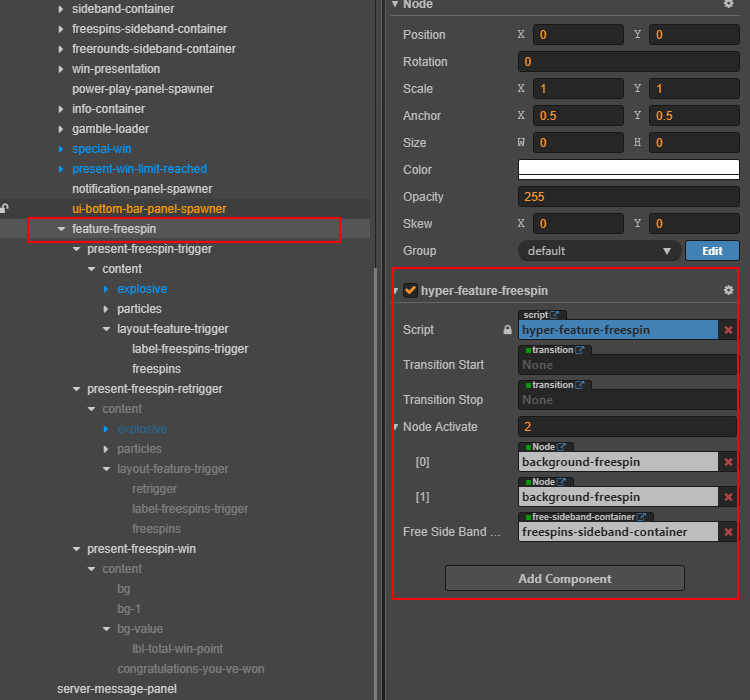

***Example Scene Structure:***

![Scene Structure](./img/freespins/featrue-freespin-in-scenes.png)

|      Property            | Description                                               |
|------------------------- |----------------------------------------------------------|
| `transitionStart`        | Triggers the show animation when Free Spins start.<br/>Default: `null`. |
| `transitionStop`         | Triggers the return animation to the base game.<br/>Default: `null`.    |
| `nodeActivate`           | Maintains the visual state during Free Spins.             |
| `freeSideBandContainer`  | Activates the Free Spins side band visual.                |

---
#### Component Configuration

##### Trigger & Retrigger

To configure the Free Spin **trigger** and **retrigger** components, follow these steps:

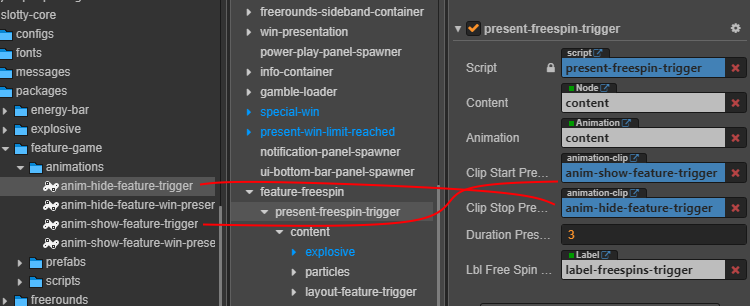

1. **Add Animations**

Include the required animations for both the trigger and retrigger elements.

![Add Animation](./img/freespins/add-anim-freespin.png)

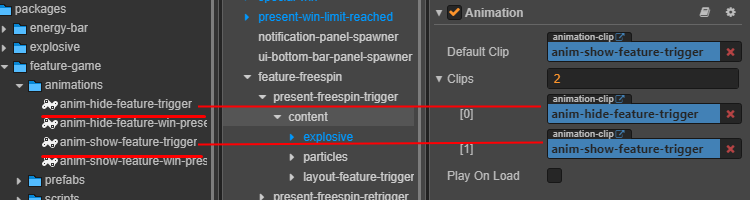

![Add Animation Content](./img/freespins/add-anim-content.png)

| Node Name | Purpose                                 | Location in Core Package                                         |
|-----------|-----------------------------------------|------------------------------------------------------------------|
| `content` | Handles zoom-in and zoom-out animations | `assets/core-assets/slotty-core/packages/feature-game/animations` |

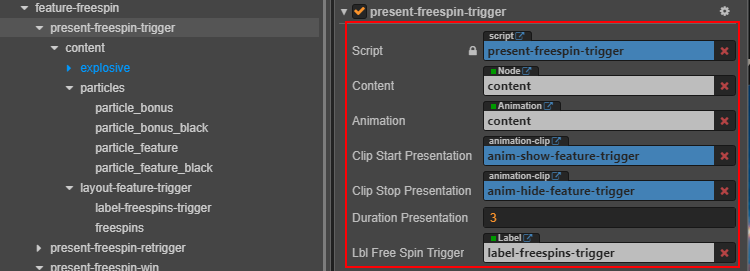

![Trigger Config](./img/freespins/freespin-trigger.png)

| Property               | Description                                                              |
|------------------------|--------------------------------------------------------------------------|
| `durationPresentation` | Duration (in seconds) the trigger animation plays before auto-stopping   |

2. **Add Background Animation Effect**

![Effect Example](./img/freespins/effect-explosive.png)

| Prefab Name | Purpose                                         | Location in Core Package                                    |
|-------------|-------------------------------------------------|-------------------------------------------------------------|
| `explosive` | Background animation effect triggered           | `assets/core-assets/hyper-core/packages/explosive/prefabs`  |

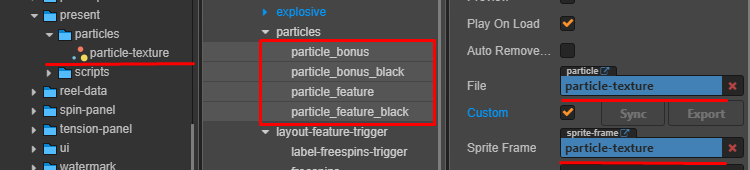

3. **Configure Particle Effects**

![Particles](./img/freespins/textture-particles.png)

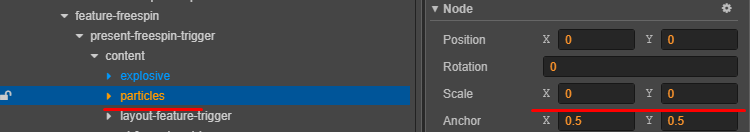

![Set Particles Scale](./img/freespins/set-particles-scale.png)

| Node Name   | Purpose                                                                                 | Location in Core Package                                   |
|-------------|-----------------------------------------------------------------------------------------|------------------------------------------------------------|
| `particles` | - Particle effects around title and number triggers.<br/>- Set scale to `1` for visibility. | `assets/core-assets/slotty-core/packages/present/particles` |

:::tip
Set up the **present freespin retrigger** in the same way as the **present freespin trigger**.
:::

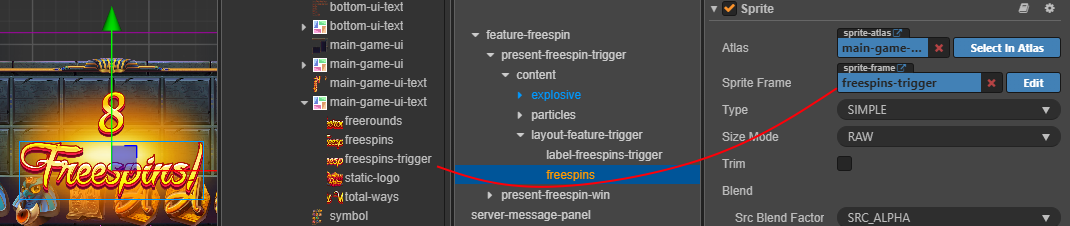

##### 1. present freespin trigger

Add fonts and textures for Free Spin trigger.

![Trigger](./img/freespins/trigger-freespin.png)

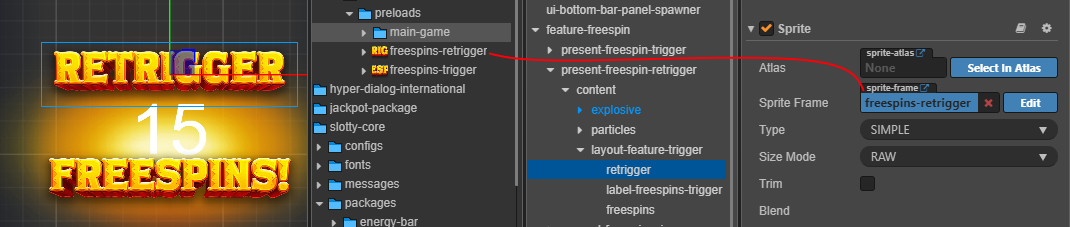

##### 2. present freespin retrigger

Add fonts and textures to show retrigger effect.

![Retrigger](./img/freespins/retrigger-freespin.png)

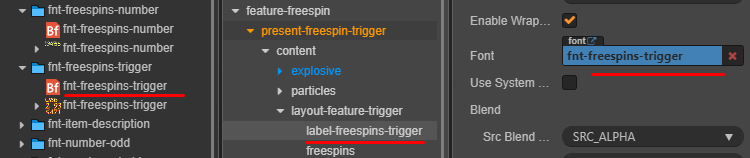

##### Add Font

![config](./img/freespins/trigger-freespin-font.png)

#### 3. Present Free Spin Win

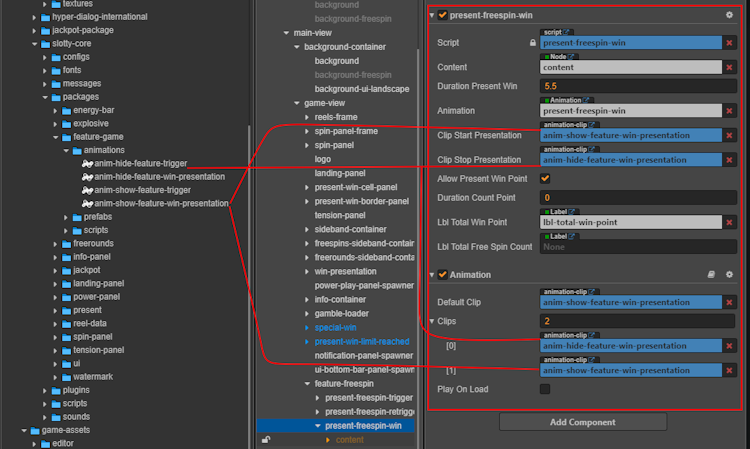

**Free Spin Win Setup**

![Win](./img/freespins/set-freespin-win.png)

| Property                | Description                                                                                   |
|-------------------------|-----------------------------------------------------------------------------------------------|
| `content`               | Node for displaying the win animation content.                                                |
| `durationPresentWin`    | Duration (in seconds) that the win presentation is shown.                                     |
| `animation`             | - Animation controller for the win presentation.<br/>- Located at: `assets/core-assets/slotty-core/packages/feature-game/animations` |
| `clipStartPresentation` | Animation clip played when the win presentation starts.                                       |
| `clipStopPresentation`  | Animation clip played when the win presentation ends.                                         |
| `allowPresentWinPoint`  | Enables the display of win points during the presentation.                                    |
| `durationCountPoint`    | Duration (in seconds) for counting up win points.                                             |
| `lblTotalWinPoint`      | Label node showing the total win points.                                                      |
| `lblTotalFreeSpinCount` | Label node showing the total number of free spins awarded.                                    |

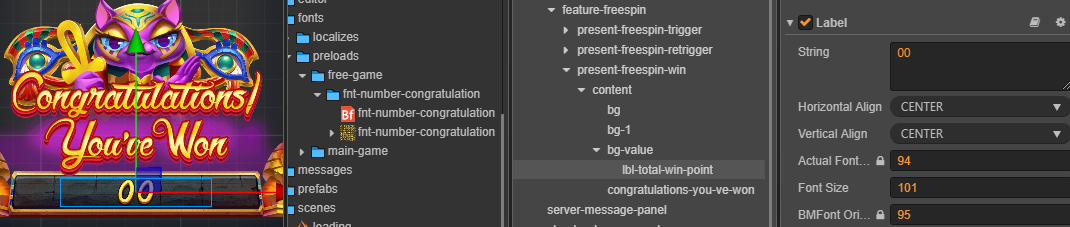

- Add congratulatory font and texture for the win display.

![Win](./img/freespins/win-freespin.png)

---

:::tip Best Practice
Follow the visual and font flow as defined by your game's design system.
:::

---
#### Free Spins Count Box

The **Free Spins Count Box** displays the remaining number of free spins to the player. Follow these steps to set it up:

##### Steps to Add the Count Box

| Step | Description                                                                 | Image                                         |
|------|-----------------------------------------------------------------------------|-----------------------------------------------|

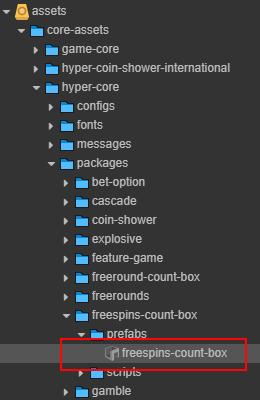

| 1    | Locate the `freespins-count-box` prefab in the Core package.                | ![Core Prefab](./img/freespins/find-freespin-box.png) |

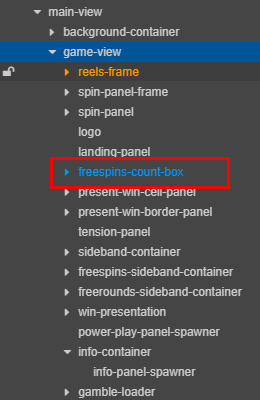

| 2    | Add the `freespins-count-box` prefab to your main game scene.               | ![In Scene](./img/freespins/game-freespin-box.png) |
| 3    | Verify its appearance in both desktop and mobile modes.                     | ![Mobile Mode](./img/freespins/both-mode-mobile.png) |

##### Platform-Specific Setup

Assign the appropriate node and controller for each platform:

| Platform | Node Name                | Component to Add            | Example Image                                         |
|----------|--------------------------|-----------------------------|-------------------------------------------------------|

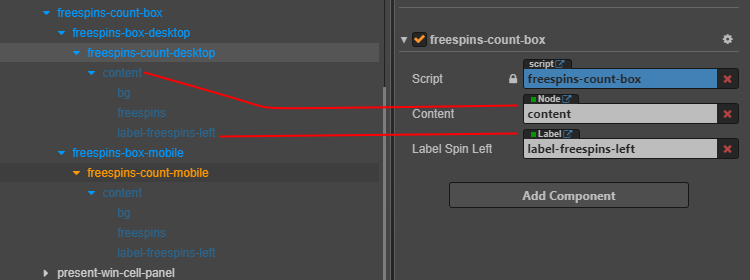

| Desktop  | `freespins-box-desktop`  | `Platform-ui-controller`    | ![Desktop Controller](./img/freespins/add-script-freespin-counter.png) |

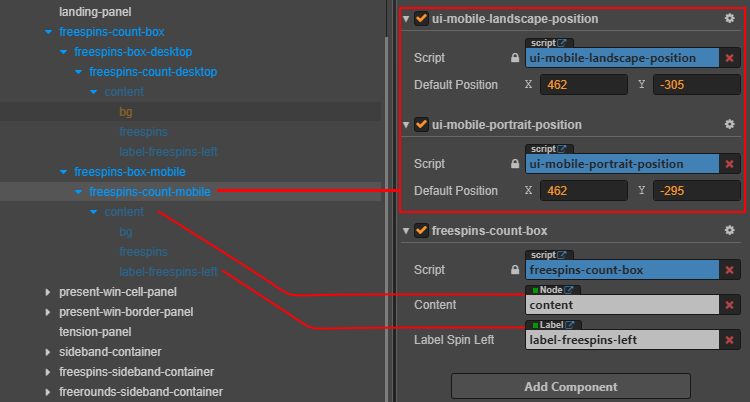

| Mobile   | `freespins-box-mobile`   | `Platform-ui-controller`    | ![Mobile Controller](./img/freespins/add-script-freespin-counter-mobile.png) |

##### Asset Configuration

Ensure the correct assets are used for each platform:

| Platform | Asset Path                                                        | Example Image                                                                 |
|----------|-------------------------------------------------------------------|-------------------------------------------------------------------------------|
| Desktop  | `assets/game-assets/textures/desktop/preloads/main-game/custom-scale` | ![Desktop Assets](./img/freespins/freespin-counter-box-desktop.png) |
| Mobile   | `assets/game-assets/textures/mobile/preloads/main-game/custom-scale`  | ![Mobile Assets](./img/freespins/freespin-counter-box-mobile.png)  |
| Common   | Freespins Box Background                                              | ![Common Asset](./img/freespins/freespin-counter-box-common.png) |

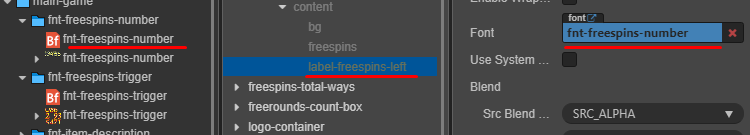

##### Font Setup

Set the font for the count box display:

![Font Setup](./img/freespins/set-font-freespin-count-box.png)

---
#### Free Spin Background Setup

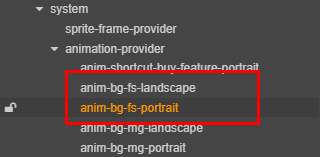

##### 1. Add Animation to Animation Provider

Add the Free Spin background animation to your **Animation Provider**.

![Add Animation](./img/freespins/add-anim-background.png)

##### 2. Configure Background Display

Set up the background for both landscape and portrait modes:

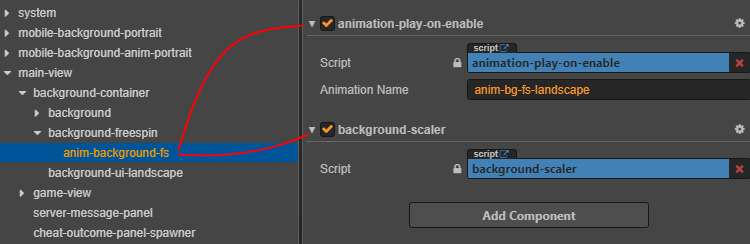

- **Landscape Mode**

![Landscape Background](./img/freespins/set-background-freespin-landscape.png)

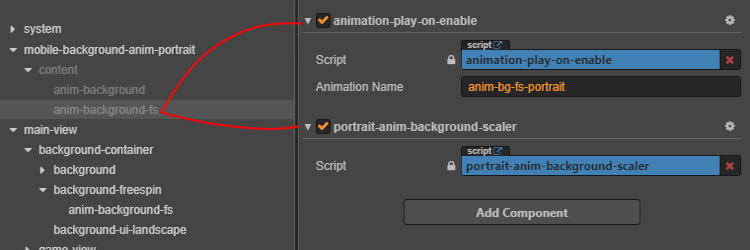

- **Portrait Mode**

![Portrait Background](./img/freespins/set-background-freespin-portrait.png)

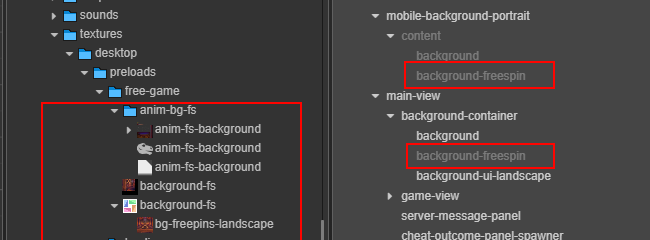

##### 3. Asset Example

Example background assets for Free Spin:

![Background Assets](./img/freespins/assets-freespin-background.png)

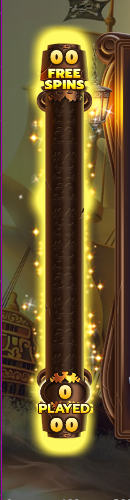

#### Sidebands (Optional)

Sidebands are optional visual elements, often used in classic slot game designs.

| Preview | Asset Structure |
|---------|----------------|

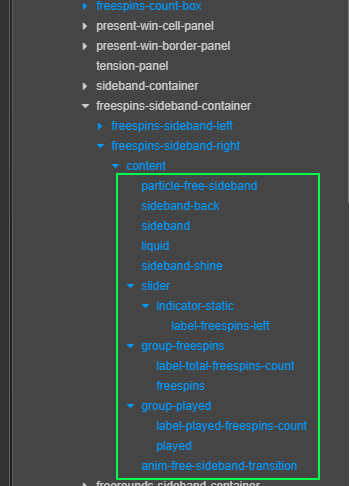

| ![Sidebands](./img/freespins/freespin-sideband.png) | ![Sideband Assets](./img/freespins/assets-freespind-sideband.png) |

**Setup Steps:**

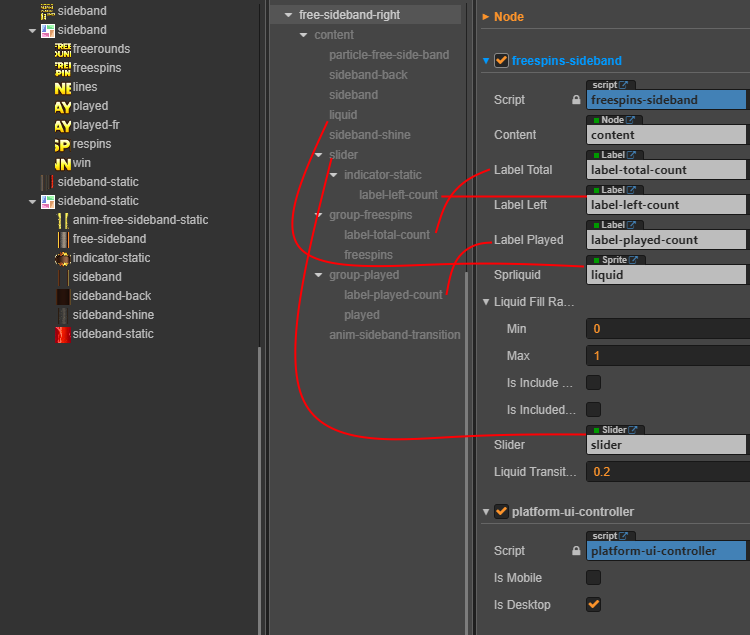

1. **Add Preference:**
    Add the free sideband preference in your configuration.
    ![Add Preference](./img/freespins/add-preference-free-sideband.png)

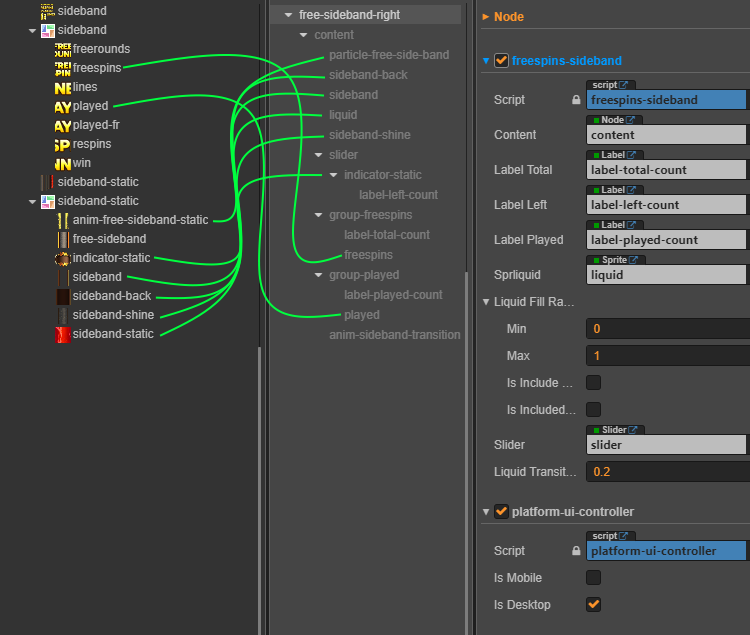

2. **Assign Texture:**
    Set the correct texture for the free sideband.
    ![Add Texture](./img/freespins/add-texture-free-sideband.png)

**Asset Mapping:**

| Asset Name                | Node/Preference Name    |
|---------------------------|------------------------|
| `anim-free-sideband-static` | `particle-free-sideband` |
| `sideband-back`           | `sideband-back`        |
| `sideband`                | `sideband`             |
| `sideband-shine`          | `sideband-shine`       |
| `sideband-static`         | `liquid`               |
| `indicator-static`        | `indicator-static`     |

---

#### Transition Effects (Optional)

##### Setup: Create Transition Node

1. **Create a new node** in your scene for the transition effect.
2. **Add the following components** to this node:
    - `transition`
    - `transition-scaler`
3. Configure the transition properties as required for your effect.

![Transition Setup](./img/freespins/setup-transition.png)

| Property           | Description                                |
|--------------------|--------------------------------------------|
| `content`          | Target node for transition effects         |
| `animationName`    | Animation identifier/reference             |
| `sfxName`          | Sound effect identifier                    |
| `transitionFrame`  | Frame to trigger transition callback       |


##### Asset Setup

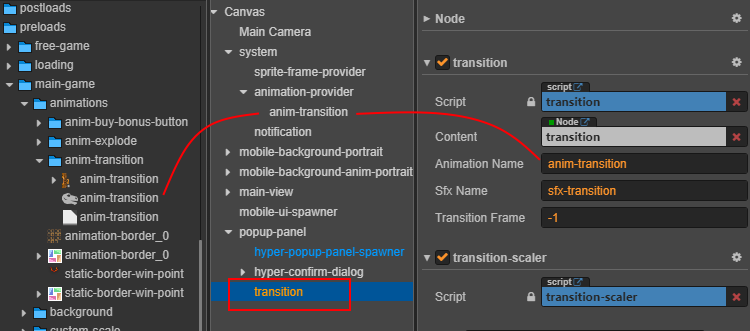

1. Add transition animation to the **Animation Provider**.
2. Match the animation name with the correct node.

![Transition Setup](./img/freespins/add-anim-transition.png)

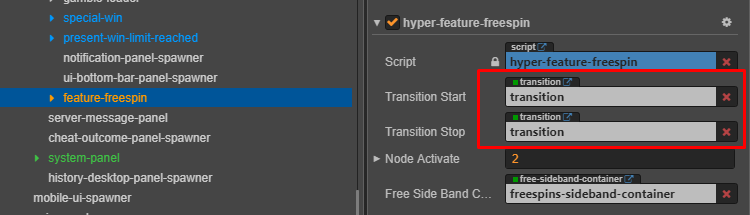

**add preferrence**

Configure preferences as needed for your transition.

![Transition Setup](./img/freespins/add-preference-transition.png)

**Example Result:**

![Transition Result](./img/freespins/fs-transition.jpg)

---

## Final Result Examples

| Phase | Image |
|-------|-------|
| Trigger | ![Trigger](./img/freespins/fs-trigger.jpg) |

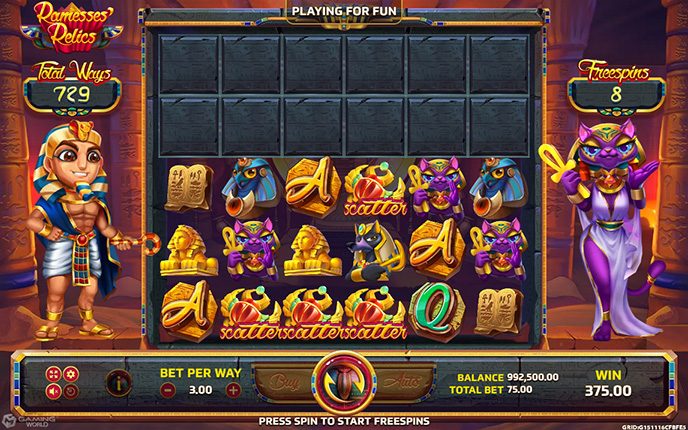

| Active Scene | ![Scene](./img/freespins/fs-scene.jpg) |

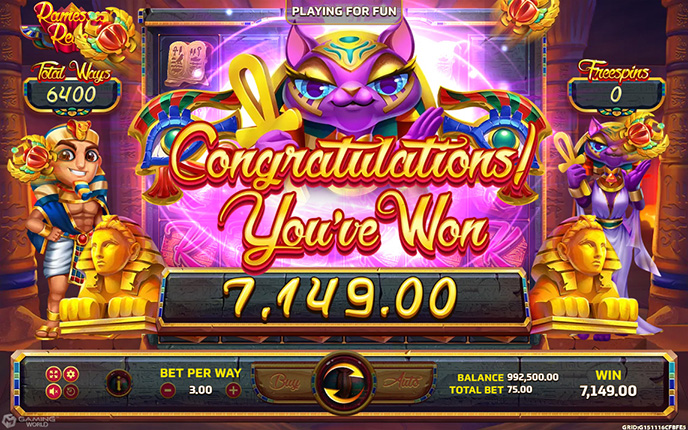

| Completion | ![Congrats](./img/freespins/fs-congra.jpg) |
