# Main Scene
This is where all the magic happen.
---
Main scene is the most complicated scene with hundreds of object, script and config.
Yet it is suprisingly simple to use.
By following step by step setup, you'll have a working main scene in no time.
:::info
In fact, if all of the other scenes are setup properly, you can even run test the game without any setup on main scene.

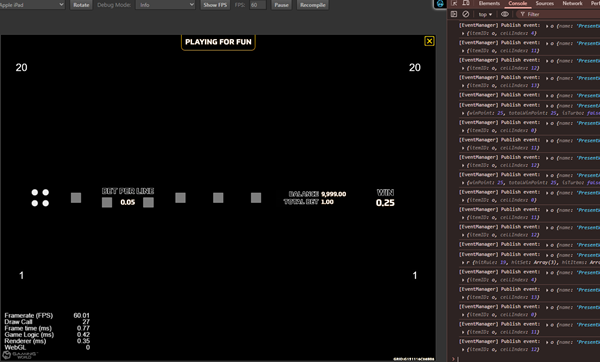

Try to run the project, you'll the result as below. It doesn't look like much but it is actually a game running without visual assets.
:::
## Setup SpriteFrame Provider
---
**SpriteFrameProvider** allows global access to "sprite frames" from code.
## Setup Animation Provider
---
**Animation Provider** contains all **animations** of the game.
## Setup Reel Slot
---
1. Prepare the asset for symbols.
2. Add symbols to **SpriteFrameProvider** which allows those symbols to be accessed globally from the code.

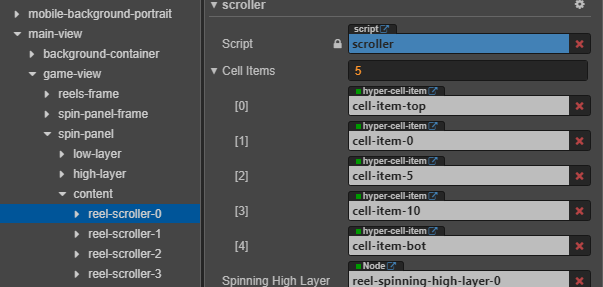

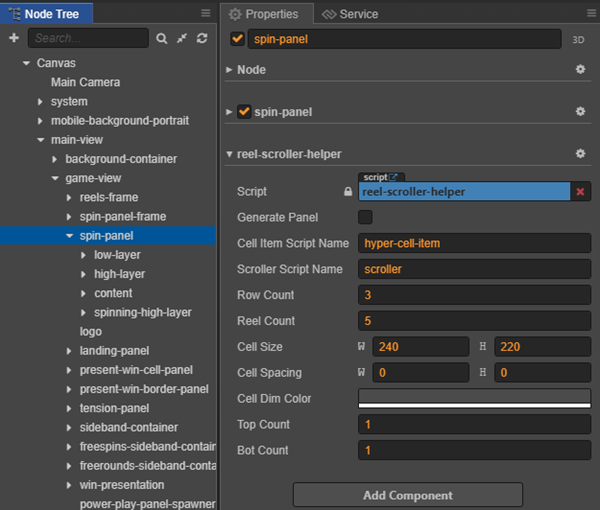

3. Config reel slot using `reel-scroller-helper`.
| Properties | Explaination | Example |
|------------|--------------|---------|

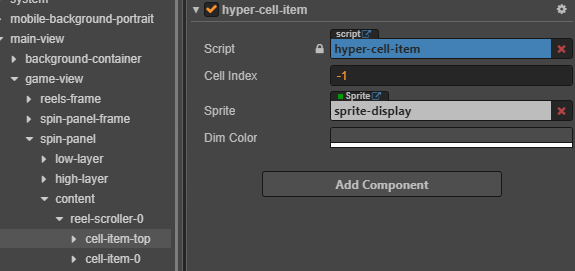

|**Cell Item Script Name**|The name of the script will be attached to each cell item.||
| **Scroller Script Name** | the name of the script for handling the spinning logic.||

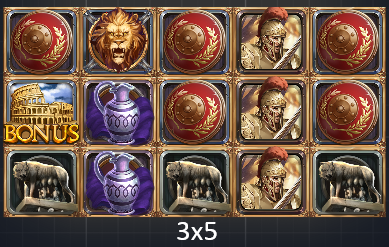

|**Row Count x Reel Count**| the number of Slot Item each row and column in the reel slot panel.||
|**Cell Size**| the size of each cells.||
|**Cell Spacing**| the distance between each cells horizontally and vertically.||

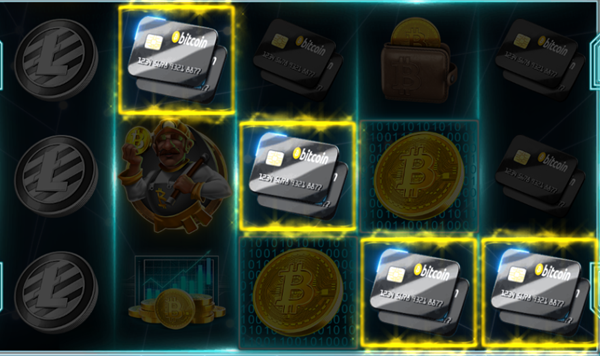

|**Cell Dim Color**| set the dark color for the non-win cells when showing winning animation for each line.||

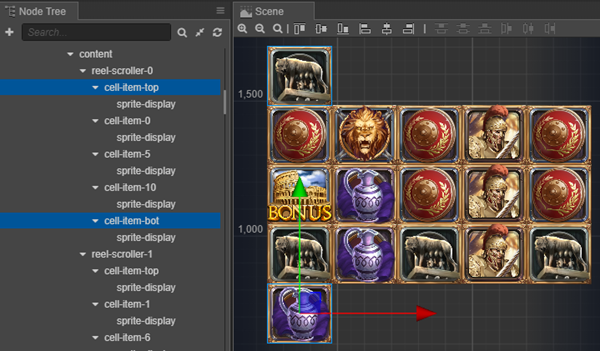

|**Top Count and Bot Count**| for spinning logic to work, a certain number of cell will be added to the top and bottom of the reel.||

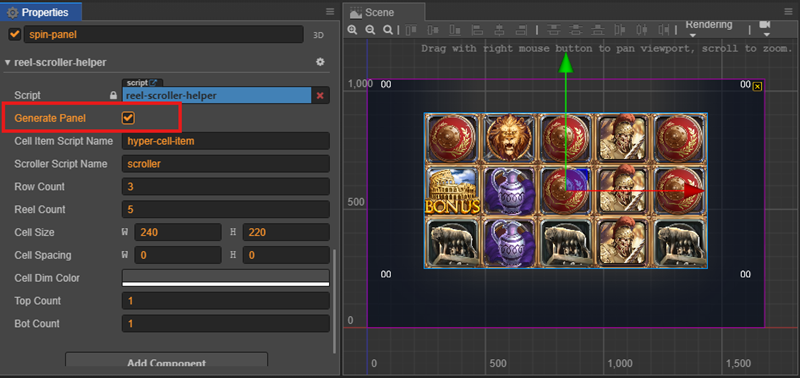

4. Generate panel using `reel-scroller-helper`.
:::tip
There is a popup panel covering the entire game scene. You should turn off this panel to see the other component clearly.
:::
## Setup Spinning Panel
Reel slot panel is just one part one the spinning panel.
There are other panels that need to be setup: **landing-panel**, **tension-panel**, **present-win-cell-panel** and **present-win-border-panel**.
The setup is very straightforward by using the `Generate Panel` command in each panel's helper class.

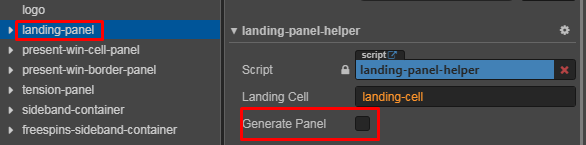

- Landing Panel:

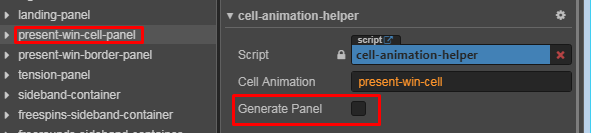

- Present Win Cell Panel:

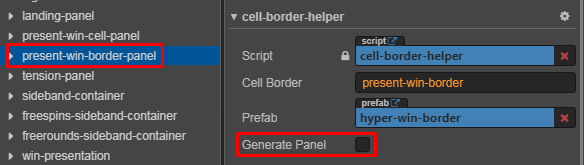

- Present Win Cell Panel:

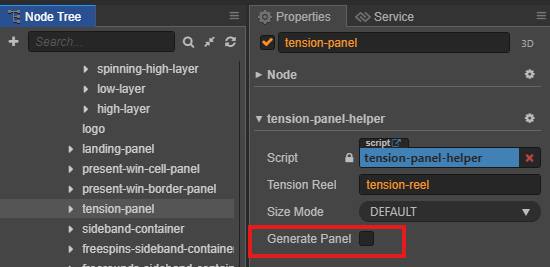

- Tension Panel:

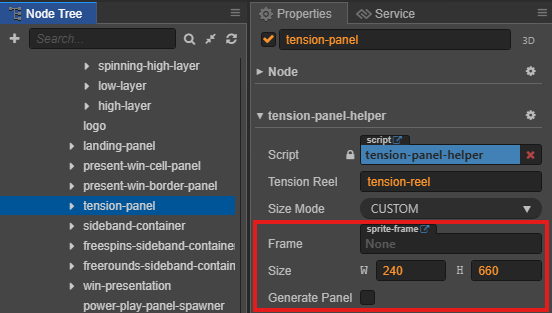

If the tension use a custom size frame, we can change the option **sizeMode** to **Custom** and set the static frame and size.
## Setup UI Panel
### UI Panel Overview
The UI system supports both desktop and mobile layouts design.
#### 🖥️ Desktop Layout
- Full bottom bar with all controls visible
- Horizontal layout maximizing screen width
#### 📱 Mobile Layout
The mobile interface adapts to both landscape and portrait orientations:
| Orientation | Preview |
|-------------|----------|

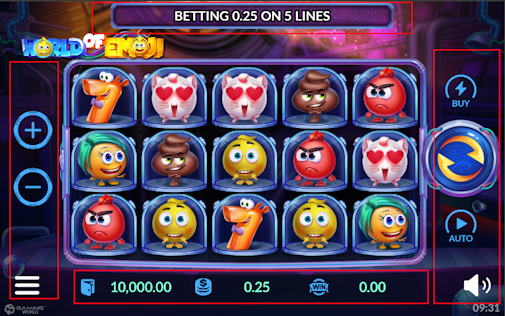

| Landscape |  |
| Portrait |  |
### UI Panel Desktop
#### Step 1: Setup Prefab Editor
| Step | Action | image |
|------|---------|--------------|

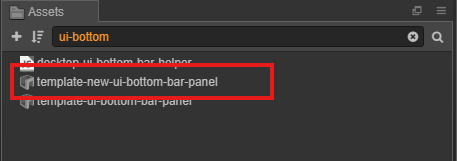

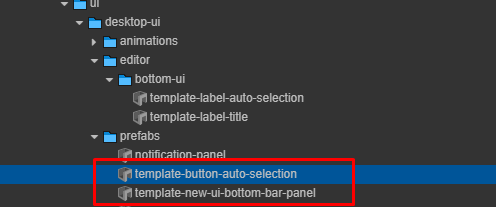

| 1. Locate Prefab | Search for `ui-bottom-bar-panel` prefab |  |
| 2. Copy Assets | Navigate from `core/editor` directory |  |
| 3. Place Assets | Copy / Paste to game assets location |  |
---
#### Step 2: Configure Prefabs
##### Core Prefabs Structure
Navigate to the location where the prefabs:

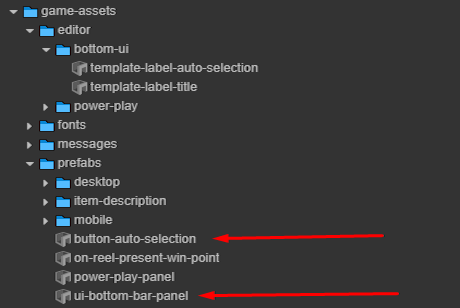

##### Rename Prefabs
Rename the copied prefabs by removing unnecessary prefixes:
| Prefix to Remove | Original Prefab Name | Final Name |
|------------------|----------------------|------------|
| `template-new-` | `template-new-ui-bottom-bar-panel` | `ui-bottom-bar-panel` |
| `template-` | `template-button-auto-selection` | `button-auto-selection` |
```jsx title="The folder structure is as follows:"
assets\game-assets\prefabs
```
#### Customize *`button-auto-selection`* Label
**Follow Game Design:**

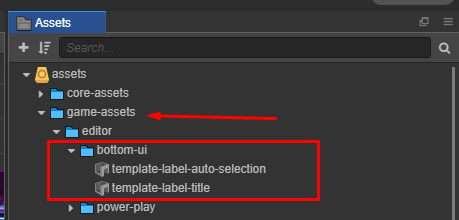

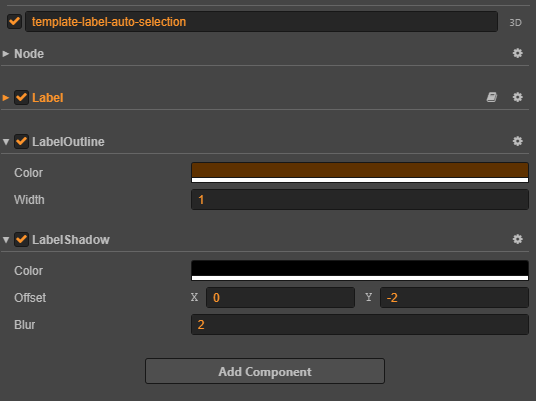

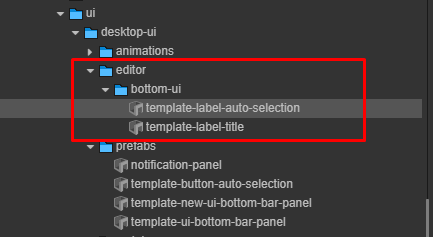

Use the `template-label-auto-selection` to customize the appearance of the label inside the `button-auto-selection` prefab.
| Component | Description |
| -------------------- | ------------------------------------------------- |
| **Label Outline** | Add an outline to make the text stand out. |
| **Label Shadow** | Add a shadow for better contrast and readability. |
| -------------------- | ------------------------------------------------- |
#### Customize *`ui-bottom-bar-panel`* Label
Use `template-label-title` to customize the `ui-bottom-bar-panel`:
:::info
*[Follow the same configuration as Button Auto Selection Labels](#customize-button-auto-selection-label)*

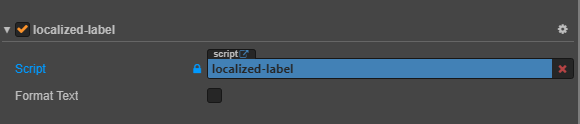

**Bottom bar labels include a localization component for multi-language support**
:::
The `FormatText` property controls text formatting behavior for label components:
| Property | Description | Example |
|----------|-------------|---------|
| `default` | Initial formatting state | `false` |
| `notify` | Formatting update callback | Updates when value changes |
---
#### Step 3: Setup Ui In Main Scenes
Create the following node configuration in your main scene:
##### Platform Node Spawner Settings
| Setting | Value | Description |
|---------|-------|-------------|
| Desktop Toggle | ✓ Enabled | Show prefabs for desktop platform |
| Mobile Toggle | ☐ Disabled | Hide prefabs for mobile platform |
| Target Prefab | `ui-bottom-bar-panel` | References prefab |
#### Step 4: Apply Textures
##### Texture Button Bar

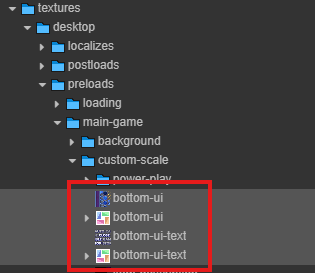

✅ Checklist assets completed for bottom UI and button UI text
🔗 [Follow is by Complete Assets Structure Guide](http://localhost:3000/docs/category/game-asset-structure):
##### Run the Helper Tool

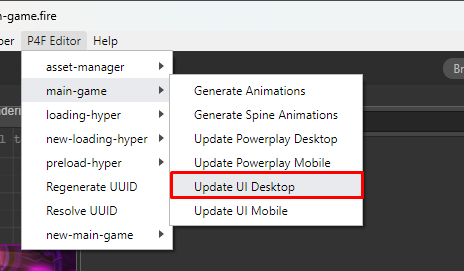

- Open the UI Desktop Helper
- Select texture assignment options
##### Verify Results

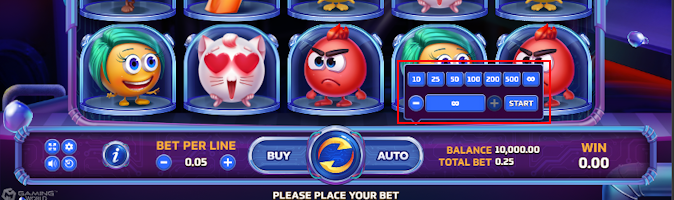

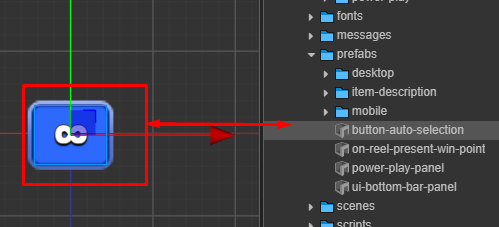

*Auto Selection prefab*

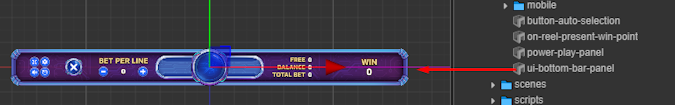

*Bottom Bar prefab*

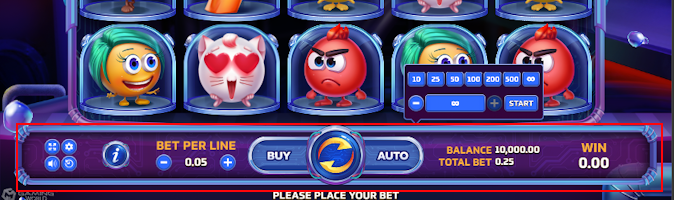

*In game*
---
### UI Panel Mobile
#### Step 1: Setup Prefab
| Step | Action | image |
|------|---------|--------------|

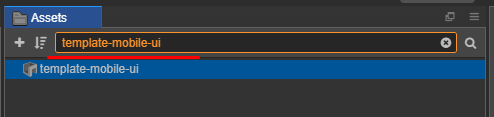

| 1. Locate Prefab | Search for `mobile-ui` prefab |  |
| 2. Place Assets | Copy to game assets location |  |

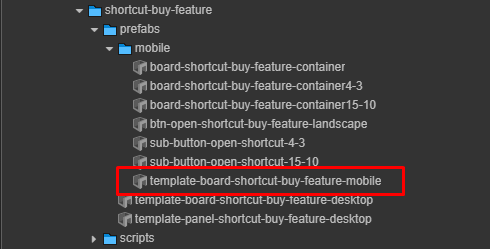

| 3. Locate Prefab | Search for `buy-feature` prefab |  |
#### Step 2: Rename Prefabs

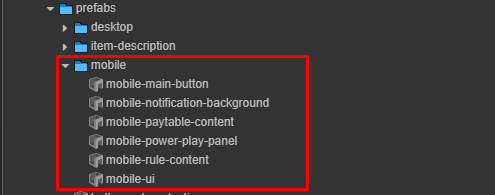

```jsx title="The folder structure is as follows:"
assets\game-assets\prefabs\mobile
```
Rename the copied prefabs by removing unnecessary prefixes:
| Prefix to Remove | Final Name |
|------------------|----------------------|
| `template-` | |
#### Step 3: Setup Ui In Main Scenes
Create the following node configuration in your main scene:

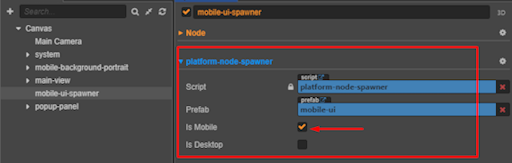

##### Platform Node Spawner Settings
| Setting | Value | Description |
|---------|-------|-------------|
| Mobile Toggle | ✓ Enabled | Show prefabs for mobile platform |
| Desktop Toggle | ☐ Disabled | Hide prefabs for desktop platform |
| Target Prefab | `mobile-ui` | References prefab |
#### Step 4: Apply Textures

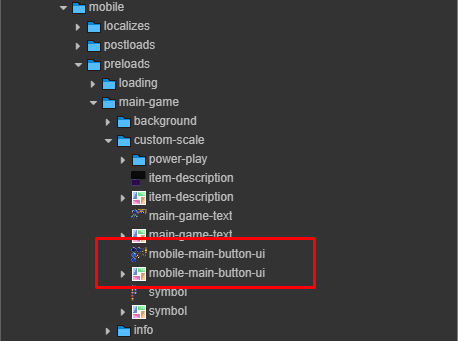

##### Texture Mobile Ui
✅ Checklist assets completed for Mobile UI
🔗 [Follow is by Complete Assets Structure Guide](http://localhost:3000/docs/category/game-asset-structure):

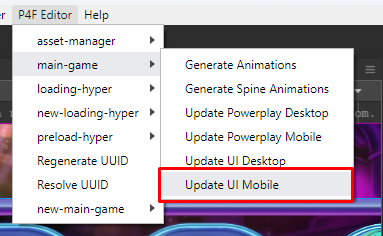

##### Run the Helper Tool
- Open the UI Mobile Helper
- Select texture assignment options
##### Results

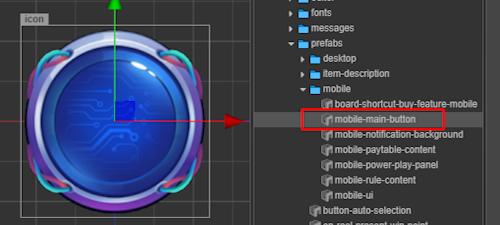

*main ui button added textures*
|  |
#### Step 4: Setup Color For Menu Mobile UI
**Follow Game Design For Mobile UI:**
| |  |
|---------|-------|
##### Overview

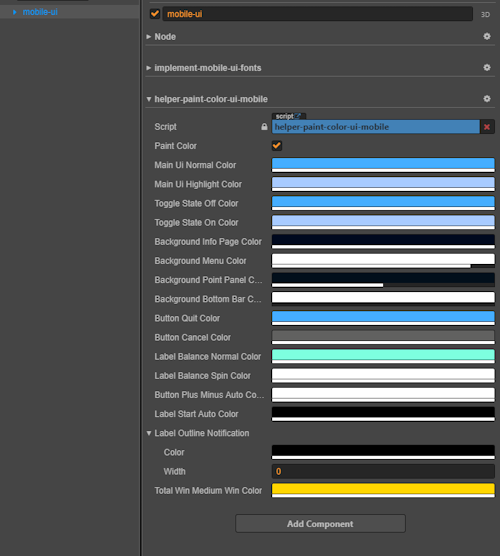

The `helper-paint-color-ui-mobile.js` component is a customizable color painter for various UI elements in a MOBILE UI. It allows designers and developers to easily apply theme-based colors across the game interface.
|Ordinal number| Properties | Explaination | Example |
|--------------|------------|--------------|---------|

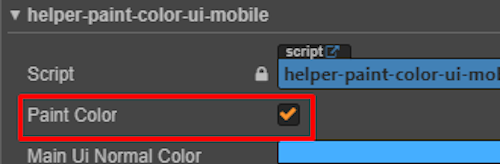

|0 |**paintColor** |Trigger to repaint UI components | |
|1 | **Main Ui Normal Color** |Default color of UI elements |  |

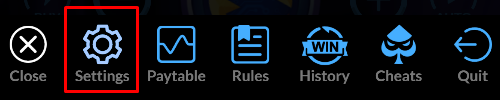

|2 | **Main Ui Highlight Color** | Highlight color for selected UI elements |  |
|3 | **Toggle State Off Color** | Color of toggle when off |  |
|4 | **Toggle State On Color** | Color of toggle when on |  |

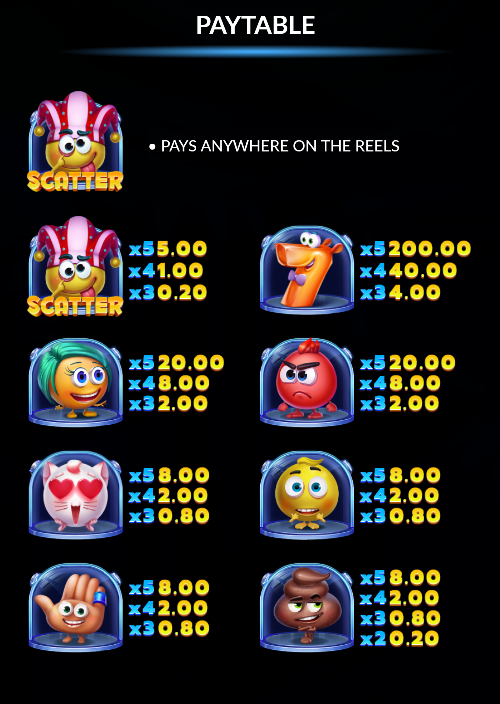

|5 | **Background Info Page Color** | Info screen background | |

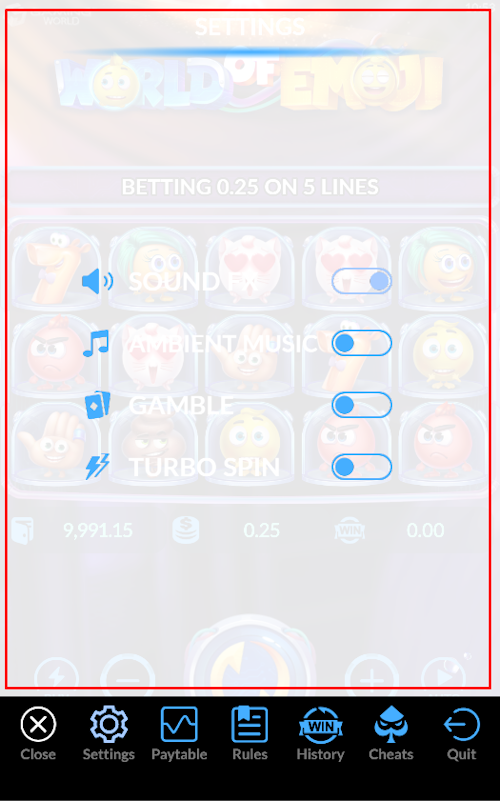

|6 | **Background Menu Color** | Menu background color |  |
|7 | **Background Point Panel Color** | Background panel for point/balance UI |  |

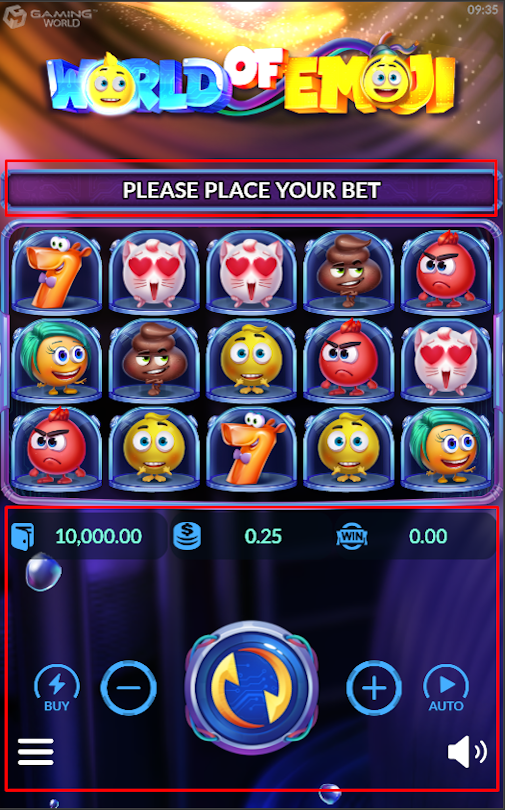

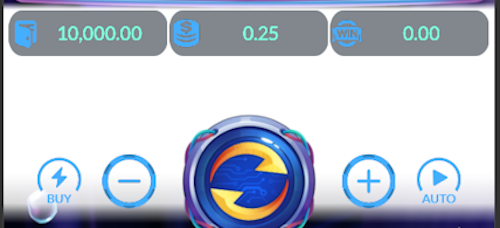

|8 | **Background Bottom Bar Color** | Background bottom bar (show only mobile portrait) |  |

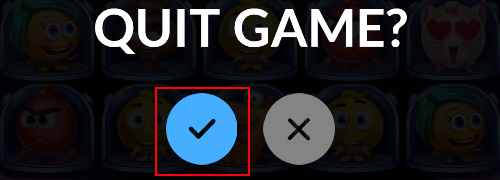

|9 | **Button Quit Color** | Quit button color |  |

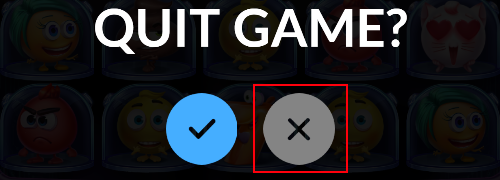

|10 | **Button Cancel Color** | Cancel button color |  |1
|11 | **Label Balance Normal Color** | Normal balance label color |  |
|12 | **Label Balance Spin Color** | During-spin label color |  |
|13 | **Button Plus Minus Auto Color** | Button plus/Minus autoplay |  |
|14 | **Label Start Auto Color** | Start autoplay label |  |
|15 | **Label Outline Notification** | Outline color + width config |  |
|16 | **Total Win Medium Win Color** | Color for medium win effects |  |
---
## Setup Background

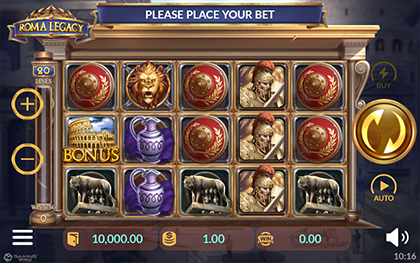

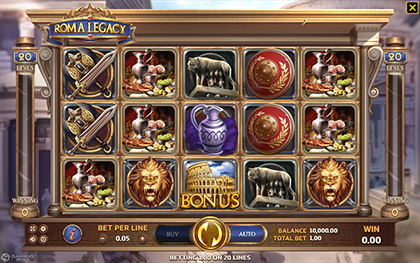

Background overview:
| | Desktop | Mobile |
|:-:|--------------|---------|
|**Background Landscape**
|
|
|
|**Background Portrait**
||
|
**Background landscape** use for Desktop and Mobile landscape.
**Background portrait** only use for Mobile portrait.
### 1. Prepare the assets
| | Assets | Description |
|:-:|--------------|---------|
|**Static**
||Static background is necessary for the game|
|**Animation**
||Animation background may or may not be present, depending on the game design|

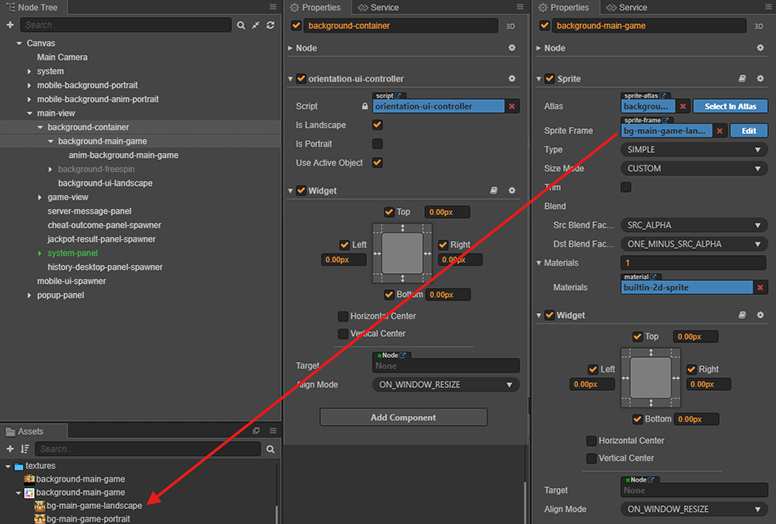

### 2. Background Landscape
- **background-container:** must have **orientation-ui-controller** to display on Landscape with the options below.
- **background-main-game:** we use sprite frame from prepared assets.
Both must add component **Widget** with the options below to resize with parent node.

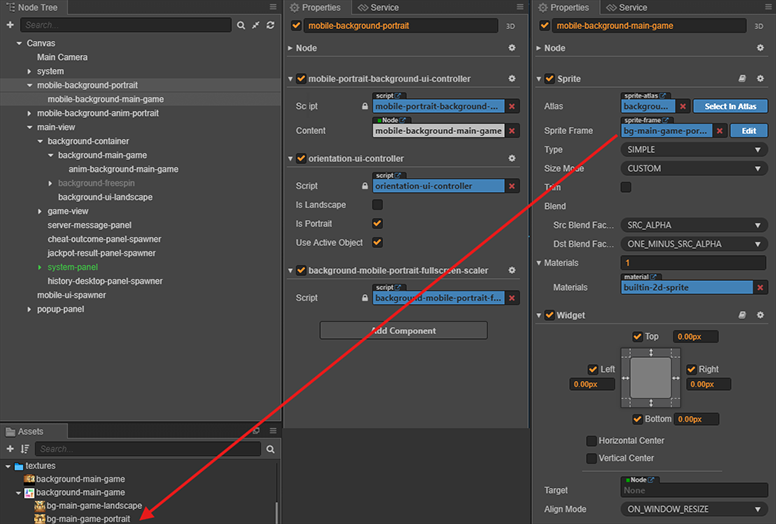

### 3. Background Portrait
- **moible-background-container:**
- Add **mobile-portrait-background-ui-controller** to display only on Mobile.
- Add **background-mobile-portrait-fullscreen-scaler** to resize with screen resolution.
- Add **orientation-ui-controller** to display on Portrait with the options below.
- **mobile-background-main-game:** we use sprite frame from prepared assets. Must add component **Widget** with the options below to resize with parent node.
### 4. Background Animation
If the game have design animation for background, we will do this step.
1. Add **animation-provider**: This component contains all **animation** of the game.

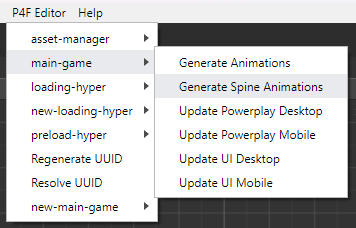

2. Using hepler to generate animation.

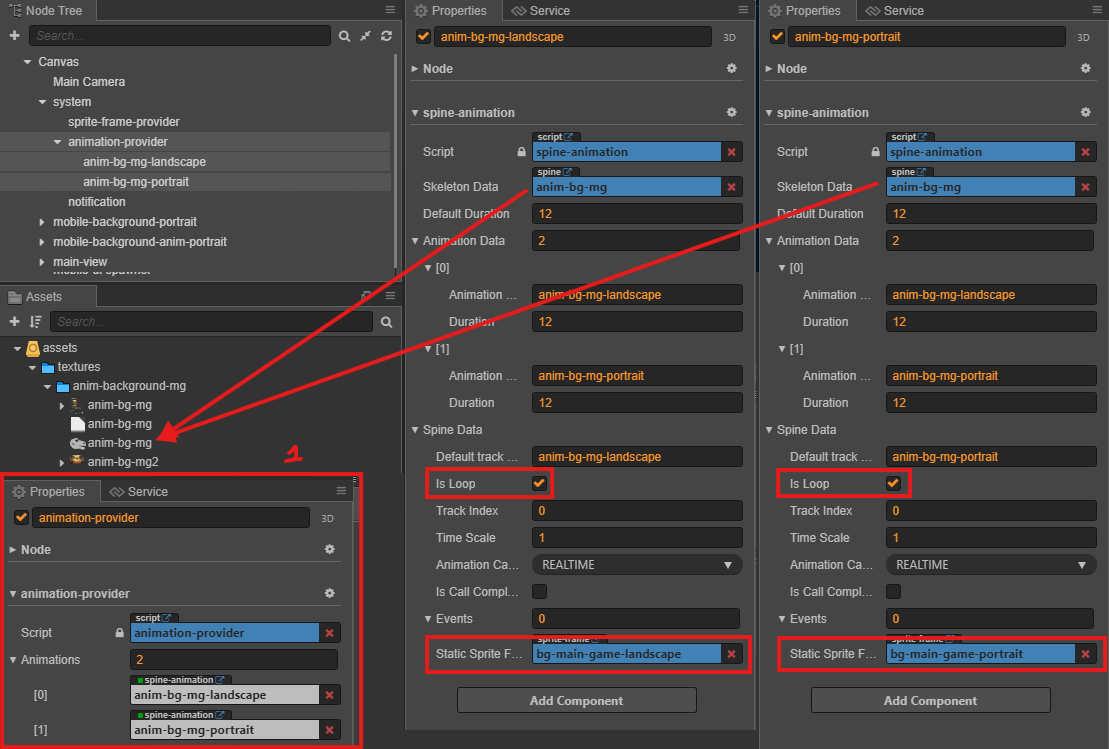

3. We have the result as below, and continue setup for **spine-animation**.
- **Is Loop**: is ✅ because this animation will play through the game.
- **Static Sprite Frame**: It will be displayed when the animation has not finished loading.
4. Add animation background with component below:

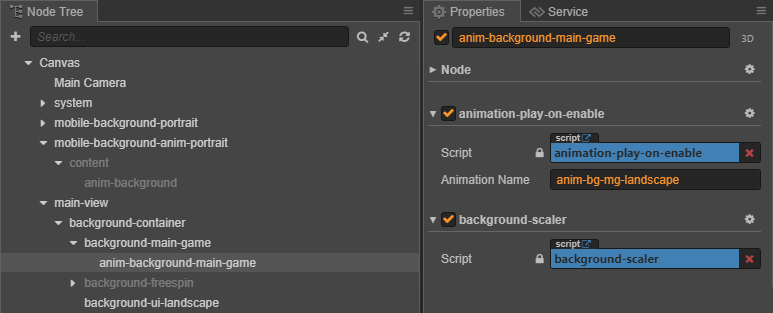

**Animation background landscape**
- Add **animation-play-on-anable** with animation name in **Animation Provider**.
- Add **background-scaler** resize with screen resolution.

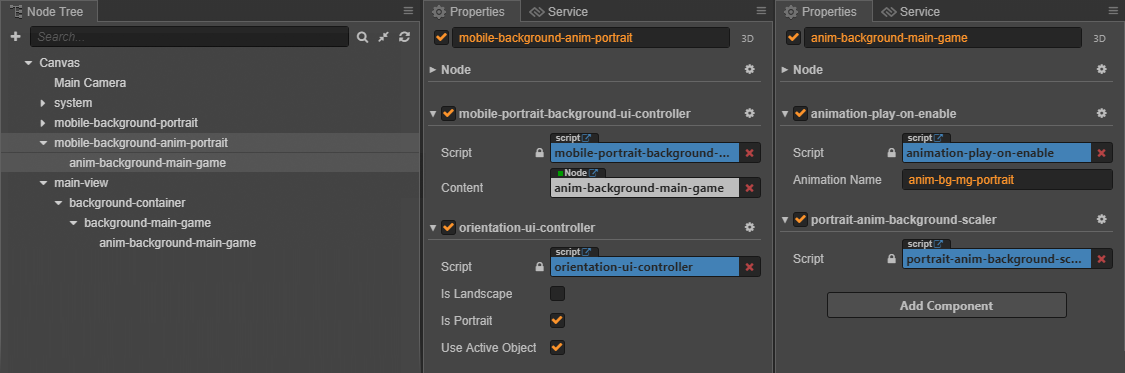

**Animation background portrait**
- **mobile-background-anim-portrait:**
- Add **mobile-portrait-background-ui-controller** to display only on **Mobile**.
- Add **orientation-ui-controller** to display on Portrait with the options below.
- **anim-background-main-game:**
- **animation-play-on-anable** with animation name in **Animation Provider**.
- **portrait-anim-background-scaler** resize with screen resolution.
## Setup Popup Panel
> To Be Added:
> - Prepare the asset
> - Run helper / p4f menu or setup manually
